Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter

Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter

Large Image :  Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter

Product Details:
Place of Origin: Tianjin, China
Brand Name: EJON
Payment & Shipping Terms:
Price: $11,000.00/sets 1-2 sets
Packaging Details: The export wooden box
Supply Ability: 5000 Set/Sets per Year
Contact Now

Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter

Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2021
Warranty Of Core Components: 1 Year Core Components: Motor
Material / Metal Processed: Aluminum, Stainless Steel, Stainless Steel,galvanized Plate,aluminum Plate, Super Sign Aluminum Profile Automation: Automatic
Year: 2021 Warranty: 1 Year
Weight (KG): 500 Key Selling Points: High-accuracy
Applicable Industries: Energy & Mining, Printing Shops, Machinery Repair Shops, Manufacturing Plant, Advertising Company Showroom Location: Egypt, Turkey, United States, Viet Nam, Brazil, Russia, Spain, Thailand, South Korea
After-sales Service Provided: Engineers Available To Service Machinery Overseas Extra Services: Slotting & Notching
Power: CNC Machine Type: Roller-Bending Machine
Raw Material: Sheet / Plate Rolling Product Name: Channel Letter Bender Machine
Height: 20-130MM Control System: 4 Servo Axis Control System
Slotting Method: Plane Cutter/milling Wheel Cutter Bending Method: Double-bends Alternate Bending
Port: China Port

Product Description
Ejon T13 CNC Full Servo Slotting and Bending Machine Metal Advertising Channel Letter Bending Machine Profile Art Signs Bender
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 0

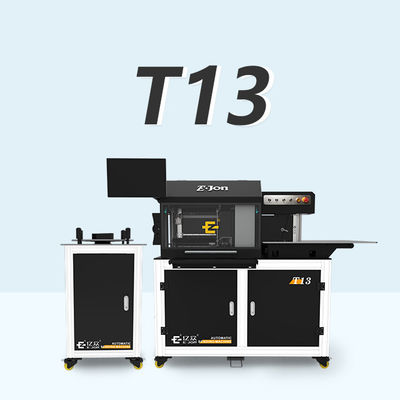

Ejon T13 is a high-end full servo multifunction automatic letter bending machine.

Equipped with a full servo control system to ensure the accuracy and stability of feeding, slotting, and bending systems. The machine frame and cover are designed by a well-known design team.

The specially designed super-long alternating manipulator feeding is used to feed materials by two sets of clamps to prevent feed slippage. The machine can be equipped with Delta or Panasonic servo control system. Small radian bending tools can be customized, the minimum angle can be R3.

The core hardware of the machine adopts the casting struture, which is formed once and has strong stability. It is equipped with computer, air purmp, voltage regulator and other related equipment.
SPECIFICATIONS
Feeding system
Double ball-screw alternate feeding device
Slotting System
Plane cutter and alloy milling cutter system
Bending System
Double blade alternate bending system
Suitable Material
Stainless steel, Galvanized steel, Aluminum plate, Aluminium profile
Material Height
Stainless steel、Galvanized steel、Aluminum plate:20~130mm/
 Aluminum profile:20-100mm
Material Thickness
0.4-1.2mm
Control System
4 axis servo control system
Min. Bending Angle
R6
File Format
Dxf.Plt.Ai
Power
AC220V、50Hz、3.0Kw
Total Weight
500Kg
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 1
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 2
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 3
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 4
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 5

Main Features

1) Extra long bending span, effectively avoiding affecting the forming angle during processsing.

2) The 4-axis servo control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.

3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc.) which ensure the strong stability.

4) 4 sets of Delta servo control system,SMC pneumatic component,chrome-faced,computer and air pump.

Detailed Images
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 6

Machine Parts

The mechanical hand feeding design,continuously feeding by the two clamps, can avoid feeding slipping and improve feeding precision.

Main Features

The double ball screw of feeding design ensure the feeding speed and precision as well as stability

Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 7
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 8

Machine Parts

Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel,using milling cutter for Aluminum plate and Aluminum profiles.

Main Features

The encoder module is the key component of the the relation equipment precision  , and the precision casting is used to  ensure the performance of the high precision encoder.

Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 9
Supporting Facility
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 10
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 11
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 12

Computer

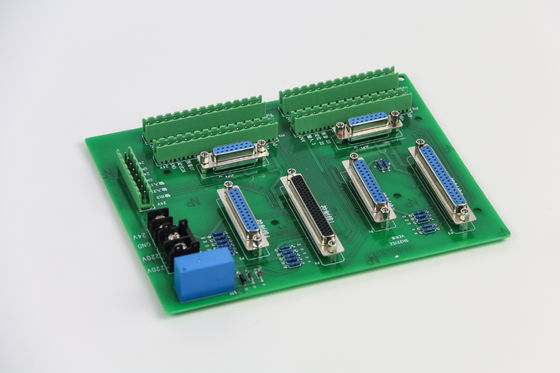

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 13

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 14

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 15
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 16
Ejon T13 CNC Full Servo Slotting and Bending Machine for Metal Advertising Channel Letter 17
Size：1410*750*1560mm 660*660*1110mm
Weight：550KG
Packaging details：The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

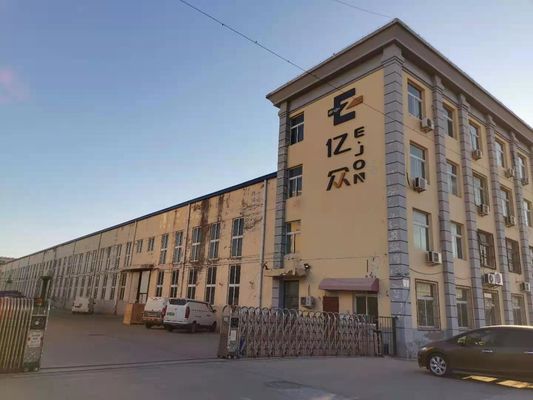

About us
