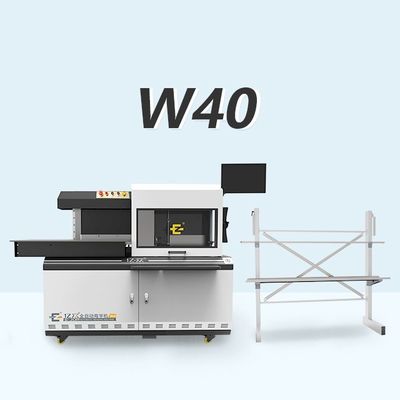

Ejon W40 Channel Letter Steel Bending Machine for Outdoor Acrylic Advertising Signs

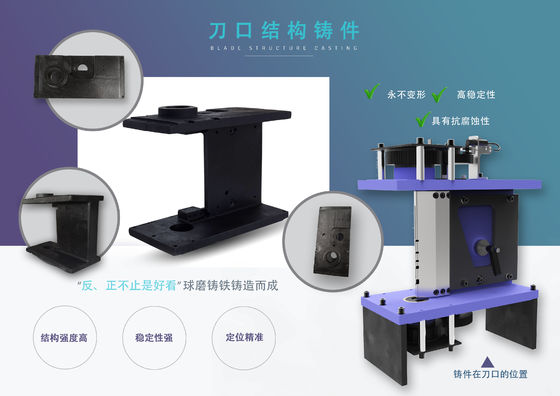

W40 adopts CNC turning tool as slotting tool, which has high strength and low loss. Each knife has 8 angles, no need to sharpen, greatly improve the working life. The processing is low noise and no dust, ensuring smooth slotting effect.

Adopting the progressive clamping feeding design, the feeding torque is large and the precision is high, which effectively avoids the waste of materials and fundamentally saves the cost. Through the perfect combination of feeding clamp, high-quality ball screw and linear guide, high-power servo drive, it can meet the high load working condition, and cooperate with the material pre-straightening system, eliminating the feeding slipping and deformation of the sheet during the feeding process.

The precision mechanical bending system performs good when processing thick plates and high-side materials. The software is easy to operate, and the processing graphics do not need to modify the nodes, which greatly improves the work effciency. It is the preferred bending machine for high-side words.

1) The bending adopts high power servo motor, high torque, high forming degree, and high-strength ball screw to meet the high load working condition.

2) The bends with wear-resistant surface, adopts high-strength alloy material, high-temperature quenching process, achieves high hardness, high strength, high wear resistance.

3) The slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
