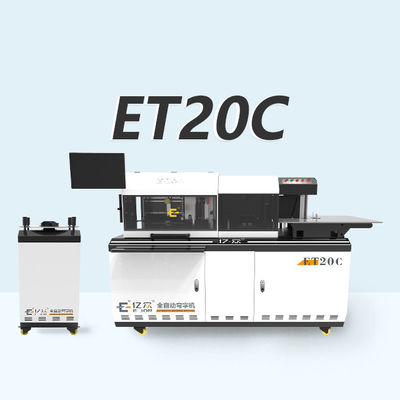

Automatic Ejon ET20C CNC Acrylic Plate Bending Machine for 20-200mm Signs and Letters

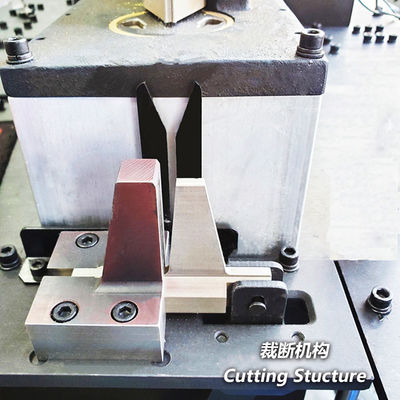

ET20C full-automatic notching and flanging bending machine adds the function of automatic notching and cutting for flat metal material on the basis of existing bending machine. The notching and cutting are controlled by servo system, which is high precision, fast speed. strong stability.

Plane cutter can slot all kinds of materials. The linear guideway is matched with the ball screw, with 750W high-power servo motor, greatly improve the feeding speed and stability.

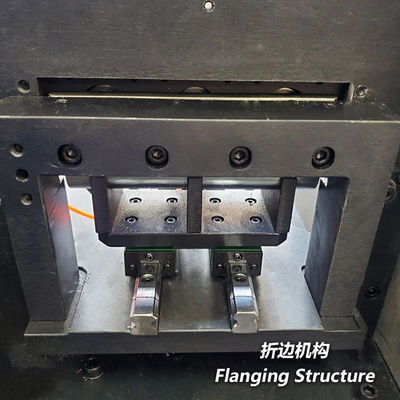

Double bends alternate bending structure, adopts the bends structure cast by ductile iron, which has good shock absorption and high structural strength, reduces the number of parts and components, equipped with high-power servo motor, which effectively improves the positioning accuracy and the ability of high-speed bending.

1) The feeding struture adopts double ball screw matched with nylon gear transmission ensuring the precise positioning, smooth feeding, greatly improving the feeding speed and stability.

2) The slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.

3) The slotting and bending adopt high-power servo motor which accurate positioning, fast response, stable operation, and effectively improve the system's rapidity and stability.

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
