220v 50/60hz Automatic Aluminum Channel Letter Bending Machine for EJON T13 Profile

Overview

Details

Place of Origin     :Tianjin,china                                                                                Brand Name:EJON

Conditon              :New                                                                                             Model Type:  T13                    Suitable Material :  Stainless steel,Galvanized plate,Aluminum plate and profile    Automaic    :Automatic

After-Sales Service:Video/Oline support,Engineers Service                                    Power    :CNC

Slotting Method     :Plane cutter and Milling wheel cutter                             slotting Trip:10-130mm

Bending Method:Double Tools Alternate Bending System                                   Warranty of core:1 Year

Material Thickness: 0.4-1.2mm                                                                                Min.Bending Angle:R6

Certification:     CE                                                                                                     Machine weight:500kg

Supply Ability

Supply Ability:2000 Sets/Year



Packing &Delivery

 Packaging   Details:The Export  Non-Fumigation  Wooden Box

 Port                        :Tianjin  Port Or other China Port

 Delivery Time        : 10-20  Working Days



Product   Description

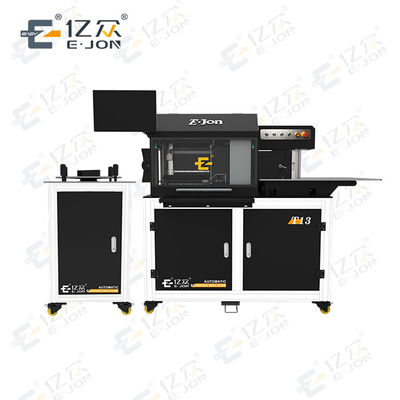

     EJ0N T13 with Delta servo   multifuction  automatic bending machine,it is widely used in Seiko letter,Resin letter,Brimless letter,Edged Aluminum letter  and other letters.Suitable material include  Stainless steel,Galvanized plate,Aluminum plate and Aluminum profile.

    Manipulator alternately feeding structure,the material clamps are casted which can avoid  scratching the material,meanwhile  improving the feeding holding.Using air pressure to press the material,avoid material uneven and ensure the smooth feeding.The double ball screw is matched with nylon gear transmission for precise positioning,which greatly improves the feeding speed and stability of the machine.The specially designed super-long alternate feeding mechanism adopts

servo control control system and is driven by high-quality double screws.It has the advantages

of large torgue,high precision and fast speed,ensuring smooth feeding process and avoiding

material deformation.

     Plane cutter can slot all kinds of materials.The linear guideway is matched with the ball screw,with 750W high-power Delta servo motor,greatly improve the feeding speed and stability.

     High strength alloy cutters are used for slotting knifes.,each knife has 8 angles,no need to sharpen,greatly improve the working life.

    Double-knife alternate bending structure,the curved knife structure cast by ductile iron,good shock absorption,high structural strength,reduced number of parts splicing,high-power servo motor,high-speed bending work under the bending mechanism,the bending mechanism is permanently deformed,which effectively improves the positioning accuracy and the stability of the high-speed bending.















SPECIFICATION
SYSTEM	Delta servo axis control
Feeding System	Circulation-typed  clamp  feeding system
Slotting System	Plane cutter slotting&milling wheel  cutter   slotting  system
Bending   System	Double blade alternate bending system
Suitable Material	Stainless steel,Galvanized plate,Aluminum plate and Aluminum profile
Slotting Height	Plane cutter:10-130mm Milling wheel cutter:20-100mm
Material Thickness	0.4-1.2mm
Control System	4 Full Delta  servo axis control
Min Bending Angle	R6
File  Format	Dxf.Plt.Ai
Power	AC220V,50HZ,3.0KW
Air Supply	0.6m3/min
Package Size	1410*750*1560mm    660*660*1110mm
Working Space	2500*1100*1560mm
Machine Weight	500Kg

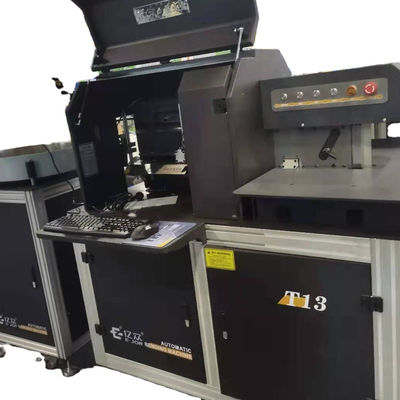

T13  Machine part details

















Equipped with 4-axis high -power 750W  full Delta servo control  system to ensure the accuracy  and stability of feeding ,slotting ,heightening and bending.



















Imported   SMC  electrical  components,high stability and

durability.

















Extra long bending span,20cm longer,effectively avoiding

affecting the forming angle during processing.

Punch function avaliable as your choice.





















                                                                                                    Feeding Parts :The feeding structure adopts double ball

 screw matched with nylon gear transmission ensuring

the precise positioning,smooth feeding,greatly improving

the feeding speed and stability.















Slotting  Parts:  Double  blade alternating slotting ,can

produce Stainless steel,Galvanized plate, Aluminum plate











































Bending  Parts: Double blade  alternate bending system,the bending  adopts   servo motor,high torque,high forming

degree.















Sample  Showing

























































How to learn machine operate



1. Operation  Manual U disk

   Provide  U  disk with machine which have detail  specific english operational manual and videos.



2. Network  Service

   Through Wechat,Whatsapp,Skype,E-mail,Team viewer provide online  service.



3.  Factory Visiting

   Welcome customer to visit our factory  to learn how to operate the machine.









Supporting  Facility















Computer                                   Pump                                        File  Format

To  use the device,you need to       The use of equipment should         The software of bending

install the control card in your          be equipped with                             machine is self-developed.  computer and then  connect to         AIR  compressor,we suggest        Import the format supports

the bending machine and install       that the selection of more               Dxf.Plt.Ai.We recommend

the software  computer.                    than 4kw,the gas flow  is                using Coredraw or adobe

Configuration:XP system or            0.6m3/Min                                       illustrator to complete

window7 32-bit system,and                                                                 the file after the export file

requiresa pcl card slot to                                                                     to Dxf.Plt.Ai  format.Then

install the control  card.                                                                      open the operating software,

                                                                                                                select the document





EXhibition



















Our  company

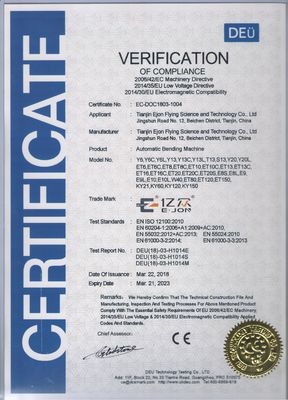

 Certification

















 PACKING AND SHIPPING





























Our service





 1.Whole machine  with one year warranty.

 2.Free training course at our plant or on line.

3.After the warranty period,,we will provide  the consumable parts

 at an agency price when you need replacement.

4.Before machine delivery,we will install all parts and test machine for you.We will take machine's working video and machine phone for you for checking,if confirmed  there're  no problem,then we'll deliver machine.

5.After machine arrived,you just need connect  power supply,software etc,it's  more easily for you.If you're worried,we can take a teaching video for you at that time.By the way,during the production of machine,we also can share the process with you.

6.As for training,firstly we'll  take more teaching video for you,and we also can remote control,most important,if you need,we can provide our technicians for on-site training and on-site teaching.And if you have time,welcome to visit our company,you can operate and learn the machine by yourself.

7.After machine shipped,I'll prepare some documents,like  B/L,Packing list,Commercial invoice,Sales contract,CE Certification for helping you pick up your machine.
