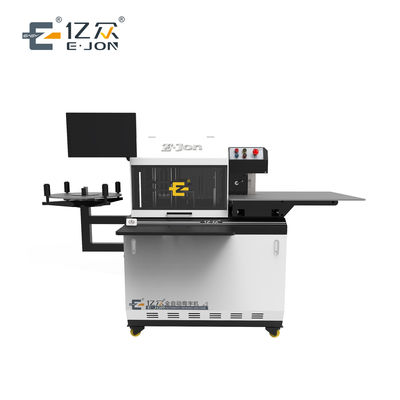

350KG Weight Auto CNC Channel Letter Making Tools for EJON Y6 3D Signs and Aluminum Plate

Overview

Details

Place of Origin     :Tianjin,china                                                                                Brand Name:EJON

Conditon              :New                                                                                             Model Type:  Y6                 Suitable Material :  Stainless steel,Galvanized plate,Aluminum plate                     Automaic    :Automatic

After-Sales Service:Video/Oline support,Engineers Service                                    Power    :CNC

Slotting Method     :Plane cutter                                                             slotting Trip:10-120mm

Bending Method:Double Blade Alternating Bending System                                Warranty of core:1 Year

Certification:     CE                                                                                                     Machine weight:350kg

Supply Ability

Supply Ability:8800 Sets/Year



Packing &Delivery

 Packaging   Details:The Export  Non-Fumigation  Wooden Box

 Port                        :Tianjin  Port Or other China Port

 Delivery Time        : 10-20  Working Days



Product   Description

     EJ0N Y6   machine are BASIC  automatic bending machine,it is widely used in Seiko letter,Resin letter,Brimless letter,Narrow edge  letter  and other letters.Suitable material include  Stainless steel,Galvanized plate,Aluminum plate .

    Y6 adopt rolling continuous  feeding system.The air pressure can  be adjusted according

to the materials thickness to avoid indentation and sliding of material .The detection system

of encoder and software combination detects the feeding accuracy in real time and guarantees

 the accuracy of ±0.1mm.

   High strength alloy cutters adopt 750w high-power servo motor, are used for slotting knives,each knife has 8 angles,no need to sharpen,greatly improve the working efficient.



       Double blade  alternating bending structure,adopt  750 w high-power servo motor, the curved knife structure cast by ductile iron,good shock absorption,high structural strength,reduced number of parts splicing,high-power servo motor,high-speed bending work under the bending mechanism,the bending mechanism is permanently deformed,which effectively improves the positioning accuracy and the stability of the high-speed bending.















SPECIFICATION
SYSTEM	4 Axis control system(2  axis  servo control)
Feeding System	Rolling continuous  feeding system
Slotting System	Plane cutter slotting system
Bending   System	Double blade alternating  bending system
Suitable Material	Stainless steel,Galvanized plate,Aluminum plate
Slotting Height	10-120mm
Material Thickness	0.4-1.2mm
Control System	4 Axis control system (2 axis servo  control)
Min Bending Angle	R4
File  Format	Dxf.Plt.Ai
Power	AC220V,50HZ,2.0KW
Air Supply	0.6m3/min
Package Size	1200(length)*720(width)*1480(height)mm
Working Space	2300(length)*1080(width)*1480(height)mm
Machine Weight	350Kg



Y6 Machine part details







                                                                                                    Feeding Parts :The feeding support adopts an integral casting

strcture,which effectively avoids the deformation generated

during the feeding and ensures the stability of feeding.













Slotting  Parts: Adopt  750W  high-power servo motor,High strength alloy cutters are used for slotting

knives,each knife has 8 angles,no need to sharpen,greatly improve the working efficient.







































Bending  Parts: Double blade  alternating bending system,the bending  adopts 750W  servo motor,fast response,stable operation,and effectively improve the system’s rapidity and

stability.

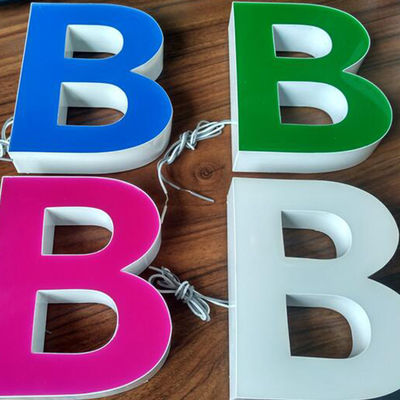

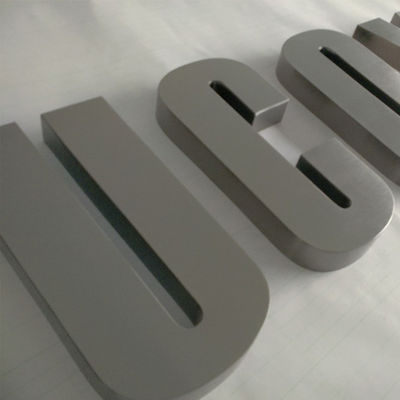

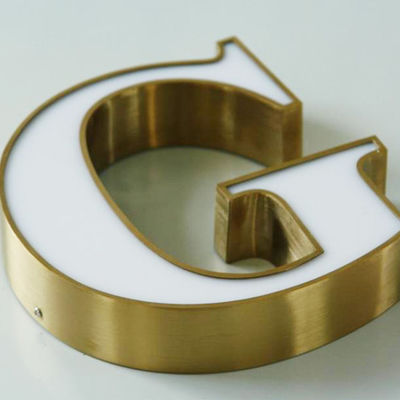

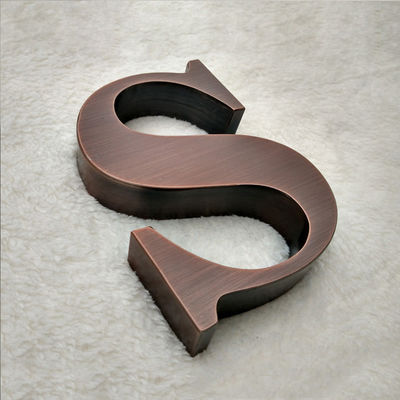

Sample  Showing



























































How to learn machine operate



1. Operation  Manual U disk

   Provide  U  disk with machine which have detail  specific english operational manual and videos.



2. Network  Service

   Through Wechat,Whatsapp,Skype,E-mail,Team viewer provide online  service.



3.  Factory Visiting

   Welcome customer to visit our factory  to learn how to operate the machine.









Supporting  Facility















Computer                                   Pump                                        File  Format

To  use the device,you need to       The use of equipment should         The software of bending

install the control card in your          be equipped with                             machine is self-developed.  computer and then  connect to         AIR  compressor,we suggest        Import the format supports

the bending machine and install       that the selection of more               Dxf.Plt.Ai.We recommend

the software  computer.                    than 4kw,the gas flow  is                using Coredraw or adobe

Configuration:XP system or            0.6m3/Min                                       illustrator to complete

window7 32-bit system,and                                                                 the file after the export file

requiresa pcl card slot to                                                                     to Dxf.Plt.Ai  format.Then

install the control  card.                                                                      open the operating software,

                                                                                                                select the document





EXhibition



















Our  company

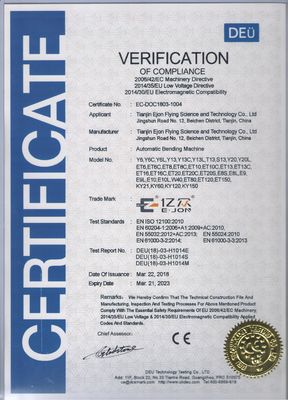

 Certification
