CE Certified Multifunctional Aluminium Alloy Channel Letter Bending Machine from EJON

Overview

Details

Place of Origin     :Tianjin,china                                                                                Brand Name:EJON

Conditon              :New                                                                                             Model Type:  ET20                    Suitable Material :  Stainless steel,Galvanized plate,Aluminum plate and profile    Automaic    :Automatic

After-Sales Service:Video/Oline support,Engineers Service                                    Power    :CNC

Slotting Method     :Plane cutter and Milling wheel cutter                             slotting Trip:10-200mm

Bending Method:Double Tools Alternate Bending System                                   Warranty of core:1 Year

Certification:     CE                                                                                                     Machine weight:700kg

Supply Ability

Supply Ability:8800 Sets/Year



Packing &Delivery

 Packaging   Details:The Export  Non-Fumigation  Wooden Box

 Port                        :Tianjin  Port Or other China Port

 Delivery Time        : 10-20  Working Days



Product   Description

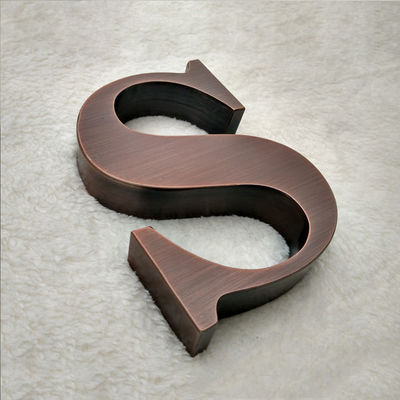

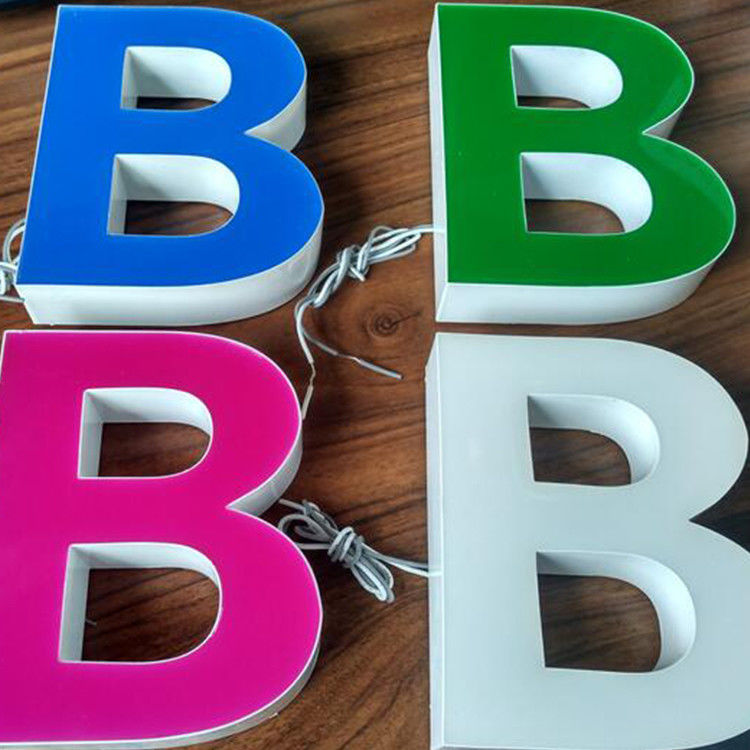

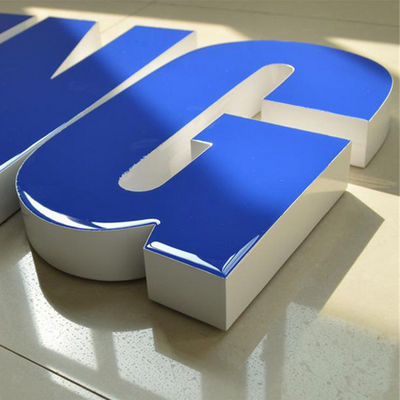

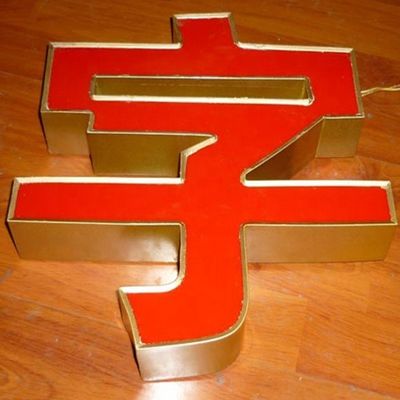

     EJ0N ET20   machine are multifuction  automatic bending machine,it is widely used in Seiko letter,Resin letter,Brimless letter,Edged Aluminum letter  and other letters.Suitable material include  Stainless steel,Galvanized plate,Aluminum plate and Aluminum profile.

    Manipulator alternately feeding structure,the material clamps are casted which can avoid  scratching the material,meanwhile  improving the feeding holding.Using air pressure to press the material,avoid material uneven and ensure the smooth feeding.The double ball screw is matched with nylon gear transmission for precise positioning,which greatly improves the feeding speed and stability of the machine.

     Plane cutter can slot all kinds of materials.The linear guideway is matched with the ball screw,with 750W high-power servo motor,greatly improve the feeding speed and stability.

     High strength alloy cutters are used for slotting knifes.,each knife has 8 angles,no need to sharpen,greatly improve the working life.

    Double-knife alternate bending structure,the curved knife structure cast by ductile iron,good shock absorption,high structural strength,reduced number of parts splicing,high-power servo motor,high-speed bending work under the bending mechanism,the bending mechanism is permanently deformed,which effectively improves the positioning accuracy and the stability of the high-speed bending.

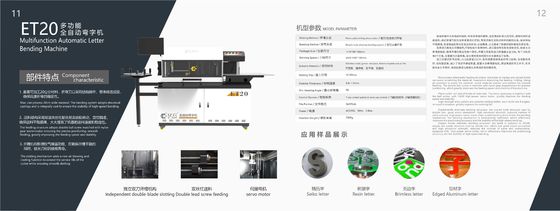

SPECIFICATION
SYSTEM	7 Axis control system(3 servo axis control)
Feeding System	Circulation-typed  clamp  feeding system
Slotting System	Independent double-blade : Plane cutter slotting&milling wheel  cutter   slotting  system
Bending   System	Double blade alternate bending system
Suitable Material	Stainless steel,Galvanized plate,Aluminum plate and Aluminum profile
Slotting Height	10-200mm
Material Thickness	0.4-1.2mm
Control System	7 Axis control system (3 servo axis control)
Min Bending Angle	R6
File  Format	Dxf.Plt.Ai
Power	AC220V,50HZ,2.0KW
Air Supply	0.6m3/min
Package Size	1410*780*1600mm
Working Space	2400*1100*1500mm
Machine Weight	700Kg



ET20  Machine part details





                                                                                                    Feeding Parts :The feeding structure adopts double ball

 screw matched with nylon gear transmission ensuring

the precise positioning,smooth feeding,greatly improving

the feeding speed and stability.

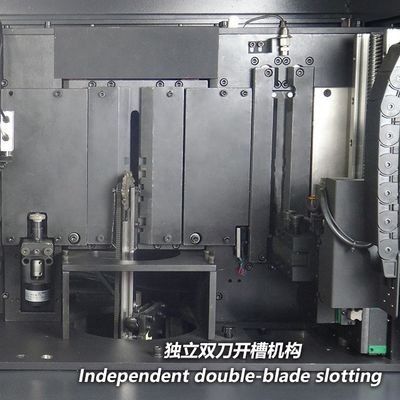

Slotting  Parts: Independent double-blade slotting .The

slotting mechanism adds a new air blowing and cooling function

to extend the service life of the cutter while ensuring smooth

slotting.







































Bending  Parts: Double blade  alternate bending system,the bending  adopts   servo motor,high torque,high forming

degree.















Sample  Showing

























































How to learn machine operate



1. Operation  Manual U disk

   Provide  U  disk with machine which have detail  specific english operational manual and videos.



2. Network  Service

   Through Wechat,Whatsapp,Skype,E-mail,Team viewer provide online  service.



3.  Factory Visiting

   Welcome customer to visit our factory  to learn how to operate the machine.









Supporting  Facility















Computer                                   Pump                                        File  Format

To  use the device,you need to       The use of equipment should         The software of bending

install the control card in your          be equipped with                             machine is self-developed.  computer and then  connect to         AIR  compressor,we suggest        Import the format supports

the bending machine and install       that the selection of more               Dxf.Plt.Ai.We recommend

the software  computer.                    than 4kw,the gas flow  is                using Coredraw or adobe

Configuration:XP system or            0.6m3/Min                                       illustrator to complete

window7 32-bit system,and                                                                 the file after the export file

requiresa pcl card slot to                                                                     to Dxf.Plt.Ai  format.Then

install the control  card.                                                                      open the operating software,

                                                                                                                select the document
