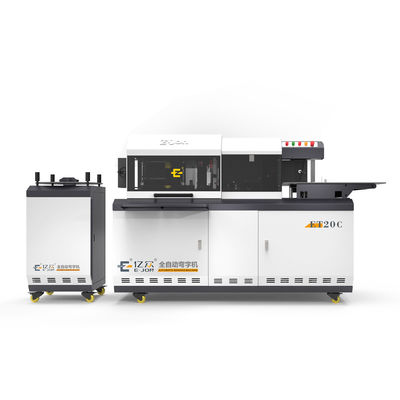

ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching

ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching
ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching

Large Image :  ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching

Product Details:
Place of Origin: Tianjin, China
Brand Name: EJON
Payment & Shipping Terms:
Price: $19,800.00/sets 1-2 sets
Packaging Details: Wooden box
Supply Ability: 1000 Piece/Pieces per Year
Contact Now

ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching

Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2022
Warranty Of Core Components: 1 Year Core Components: Motor
Material / Metal Processed: Plastic, PVC, Aluminum, Stainless Steel, Carbon Steel Automation: Automatic
Warranty: 1 Year Weight (KG): 850
Key Selling Points: High-accuracy Applicable Industries: Advertising Company, Signage
Showroom Location: Egypt, United States, Viet Nam, Russia, Spain, Thailand, UAE, Ukraine, Malaysia After-sales Service Provided: Engineers Available To Service Machinery Overseas
Name: Bending Machine Application: Stee/ Aluminum
After Warranty Service: Field Maintenance And Repair Service Port: Tianjin Port

Product Description

Product Application

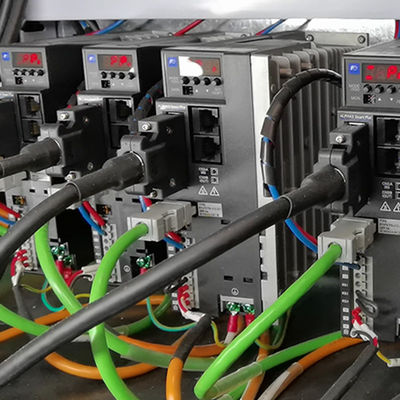

ET20C: 4 sets of Delta servo motors control system.

1. V-notching and flanging.

2. Final cutting function.

3. Double ball screws drive make it more powerful, more fast and higher precision.The mechanical hand feeding design,continuously feeding by the two clamps, can avoid feeding slipping and improve feeding precision.

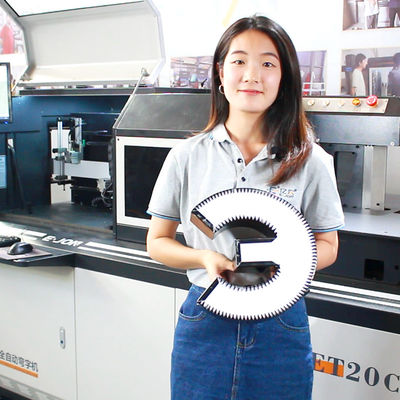

It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and resin words, etc.

SPECIFICATIONS
Feeding system
Double ball-screw alternate feeding device
Slotting System
Plane cutter
Bending System
Double blade alternate bending system
Suitable Material
Stainless steel, Galvanized steel, Aluminum plate
Material Height
20~200mm (08"-8")
Material Thickness
0.4-1.5mm
Control System
6 axis servo control system
V-notching method
Servo motor controlled die stamping


V-notching angle
30°/120°
Min. Bending Angle
R6
File Format
Dxf.Plt.Ai
Power
AC220V、50Hz、3.0Kw
Air Supply
0.6m3/Min
Total Weight
800Kg
ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching 0
ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching 1
ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching 2
ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching 3

Main Features

1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.

2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.

3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc.) which ensure the strong stability.

4) 4 sets of Delta servo control system,SMC pneumatic component,chrome-faced,computer and air pump.

Detailed Images
ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching 4

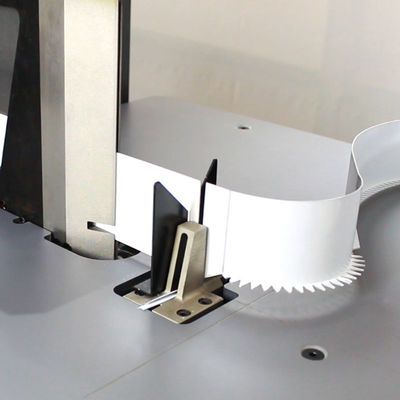

Cutting system

Plane cutter and wheel cutter, easy to process stainless steel and aluminum.

V-cutting and flanging system

Servo controlled with pneumatic

ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching 5
ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching 6

Shearing system

Automatically shearing the processed materials.

Prodcuts

Die punching, v-notching and flanging

ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching 7
Our Service
ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching 8

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching 9

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching 10
Packaging
Size
2250(L) * 1100 (W) * 1730(D)
Weight
850KG



Packaging Details
1. Nrmal package is wooden box(Size: L*W*H).

2. Customer special request.
ET20C Channel Letter Bending Machine for Aluminum and Stainless Steel V-Cutting Flange Notching 11
Packaging
Size
750* 750* 1250mm
Weight
60KG



Packaging Details
1. Nrmal package is wooden box(Size: L*W*H).

2. Customer special request.
