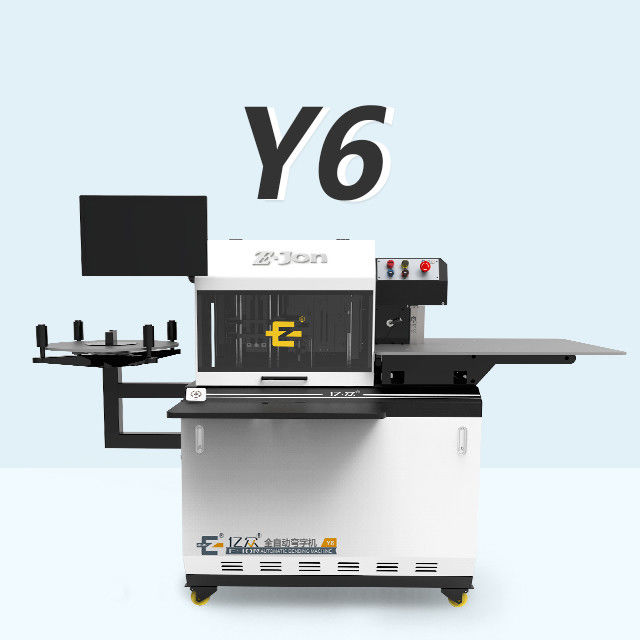

MODEL EJON Y6 Automatic Acrylic Channel Letter Bending Machine for Slotting Notching

Large Image : MODEL EJON Y6 Automatic Acrylic Channel Letter Bending Machine for Slotting Notching

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$6,510.00/sets 1-4 sets
Packaging Details:	The export wooden box
Supply Ability:	2000 Set/Sets per Year

Contact Now

MODEL EJON Y6 Automatic Acrylic Channel Letter Bending Machine for Slotting Notching

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Aluminum, Stainless Steel, Stainless Steel,Galvanized Sheet,Aluminum Plate,Aluminum Profile	Automation:	Automatic
Year:	2020	Warranty:	1 Year
Weight (KG):	350	Key Selling Points:	Competitive Price
Applicable Industries:	Advertising Company	Showroom Location:	Turkey, Brazil, Russia, Spain, Thailand, South Korea
Product Name:	Channel Letters Bending Machine	Machine Type:	Roller-Bending Machine
Raw Material:	Sheet / Plate Rolling	Power Supply:	AC220V/50HZ
Extra Services:	Slotting & Notching	Slotting System:	Plane Cutter
Operation Principle:	High Precision Automatic Feeding	Processing Material:	Flat Aluminum, Stainless Steel, Galvanized Sheet
Material Thickness:	0.4-1.2mm	CNC Or Not:	CNC Letter Auto Bending Machine
Port:	China Port

Product Description

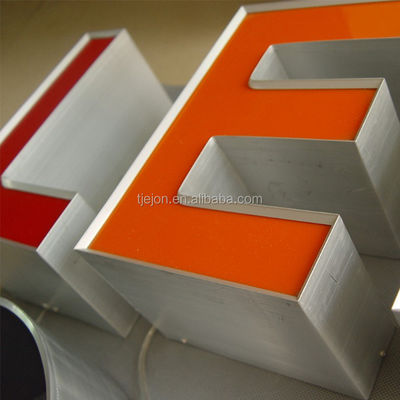

Product Application

EJON Y6 TPS multifunctional stainless steel aluminum profile automatic acrylic channel letter bending machine for sale ACCUTEK BENDING MACHINE DSD BENDING MACHINE

Multifunction channel letter bending machine,Using mechanical hand alternately feeding structure,the stability of the feeding process is effectively guaranteed. Double ball screw with nylon gear, the feeding speed of the machine is greatly improved. The material clamp is made of structural castings,avoid scratching to the material while improving the feeding holding power.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding system
Slotting System	Plane cutter slotted system
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate
Material Height	Stainless steel,Galvanized steel,Aluminum plate:20~120mm
Material Thickness	0.4~1.2mm
Accuracy	±0.1mm
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V,50Hz,3.0Kw
Air Supply	0.6m3/Min
Control System	4 axis control system (2 axis servo control)

Main Features

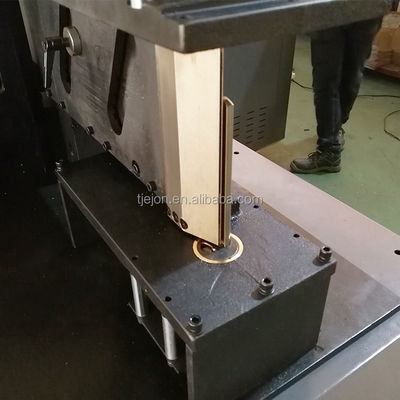

1) ;The monobloc casting of Bending Mechanism has high molding degree which ensure the bending speed and stability.

2) The casting on Clamping increases the grasping force, meanwhile does not scratch the material;

3) The double ball screw of feeding design ensures the feeding speed and precision as well as stability;

Detailed Images

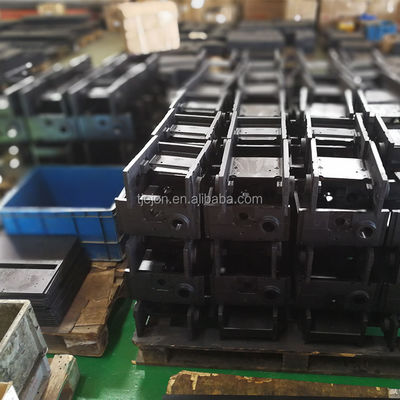

Machine Parts

The casting on Clamping increases the grasping force, meanwhile does not scratch the material

Main Features

The double ball screw of feeding design ensure the feeding speed and precision as well as stability

Machine Parts

Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel,using milling cutter for Aluminum plate and Aluminum profiles.

Main Features

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

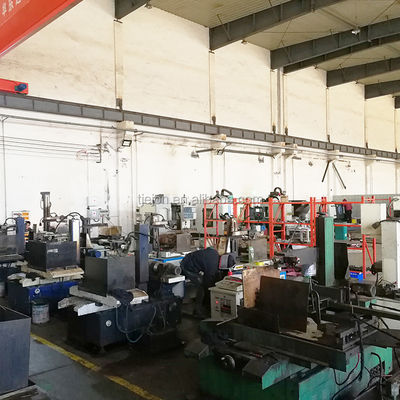

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1330(L) * 740 (W) * 1500(D)
Weight	350
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	1330(L) * 740 (W) * 1500(D)
Weight	350KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
