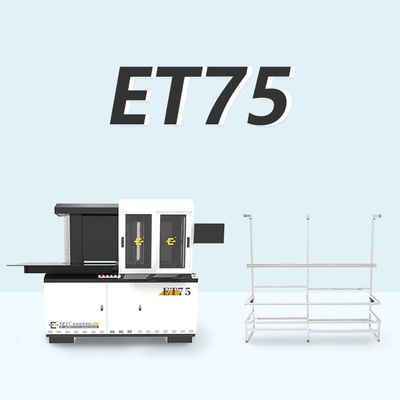

Ejon 800 mm ET75 CNC Stainless Steel Bending Machine for Outside Big Letter Sign

Large Image : Ejon 800 mm ET75 CNC Stainless Steel Bending Machine for Outside Big Letter Sign

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON
Certification:	ce

Payment & Shipping Terms:

Price:	$12,800.00/sets 1-2 sets
Packaging Details:	The export wooden box
Supply Ability:	1000 Set/Sets per Year

Contact Now

Ejon 800 mm ET75 CNC Stainless Steel Bending Machine for Outside Big Letter Sign

Description

Condition:	New	Machine Type:	Roller-Bending Machine
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor	Raw Material:	Sheet / Plate Rolling
Material / Metal Processed:	Stainless Steel,Galvanized Sheet,Aluminum Plate,Aluminum Profile	Power:	CNC
Automation:	Automatic	Extra Services:	Slotting & Notching
Year:	2021	Weight (KG):	900
Key Selling Points:	High-accuracy	Warranty:	1 Year
Applicable Industries:	Hotels, Construction Works , Advertising Company	Showroom Location:	Egypt, Turkey, France, Viet Nam, Brazil, India, Russia, Spain, Thailand, South Korea, Ukraine, Malaysia
Height:	20-800mm	SS Thickness:	0.4-1.5mm
Product Name:	LED Signs Bending Machine	After-sales Service Provided:	Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support
After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service	Local Service Location:	Egypt, Canada, Turkey, United States, Italy, France, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, South Korea, UAE, South Africa
Port:	Port Of China

Product Description

Product Application

CE Certificate Ejon ET75 750MM Outside Big Letter Sign Open Led Sign CNC Stainless Steel Bending Machine

aluminum channel letter bending machine ,stainless steel channel letter bender machine
tps cnc channel letter bending machine ,metal letter bender machine,bending letters machine
3d sign making machine,channel bending machine

W40 Using cnc turning tool as slotting tool, the strength is high and the loss is low,each knife has 8 angles, no need to sharpen a knife only to change angles,the process is low noise and no dust. By adopting the progressive clamping and feeding design, the waste of materials is effectively avoided, and the cost is saved fundamentally. Through the material fixture, the high quality ball screw and the linear guide, the perfect combination of the high-power servo drive,the pre leveling system of the compound material eliminates the phenomenon that the traditional rolling stock is easily slipped during the feeding process, and avoids the deformation of the sheet in the feeding process. Easy to operate the software,no need to change the node when processing graph,enhance the working efficiency.it is the first choice of the wide edge letters and squre letters.

SPECIFICATIONS
Feeding system	Double ball-screw progressive feeding system
Slotting System	alloy plane cutter slotting system
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized plate, Aluminum plate,iron plate
Material Height	20-750mm
Material Thickness	0.4-1.2mm
Accuracy	±0.1mm
Min. Bending Angle	R15
File Format	Dxf.Plt.Ai
Power	AC220V,50Hz,3.0Kw
Total Weight	900kg
Control System	4 axis control system(4 axis servo control)

Main Features

1)The alternated material feeding ensures the feeding precision and more material saving.

2)The 1500W servo motor ensures the bending force and more stable.

3) 3-axis imported servo driver make it faster, more stable and more precise.

Detailed Images

Machine Parts

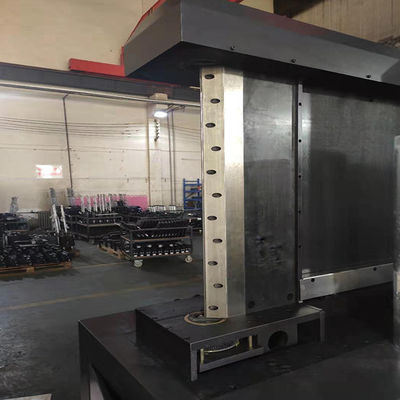

The alternated material feeding ensures the feeding precision and more material saving.

Main Features

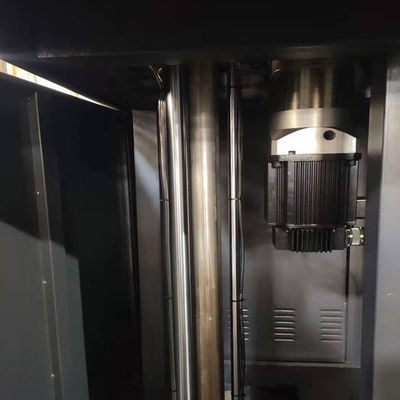

The 1500W servo motor ensures the bending force and more stable.

Machine Parts

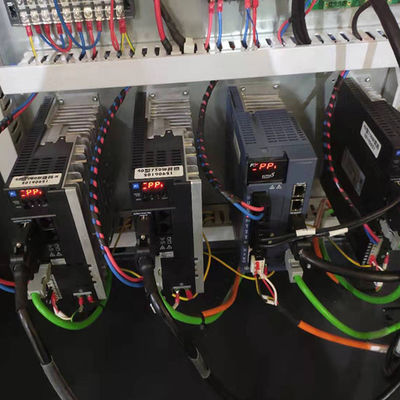

3-axis imported servo driver make it faster, more stable and more precise.

Main Features

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.

Exhibition show

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1880(L) * 780 (W) * 1850(D)
Weight	750KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
