ALLOY material processing EJON ET20C V-cutting flanging channel letter bending machine

Name: ALLOY material processing EJON ET20C V-cutting flanging channel letter bending machine
Brand: Tianjin Ejon Flying Science And Technology Co., Ltd.
Price: 12.00 USD
Availability: InStock

All Products

Steel Deburring Machine
(27)

Channel Letter Equipment
(291)

Channel Letter Bending Machine
(161)

Laser Welder Machine
(6)

Metal Sign Grinding Machine
(1)

CNC Letter Slotting Machine
(1)

CNC Laser Cutting Machine
(1)

CNC Router Machine
(1)

3D Printer Machine
(1)

Certification

I'm Online Chat Now

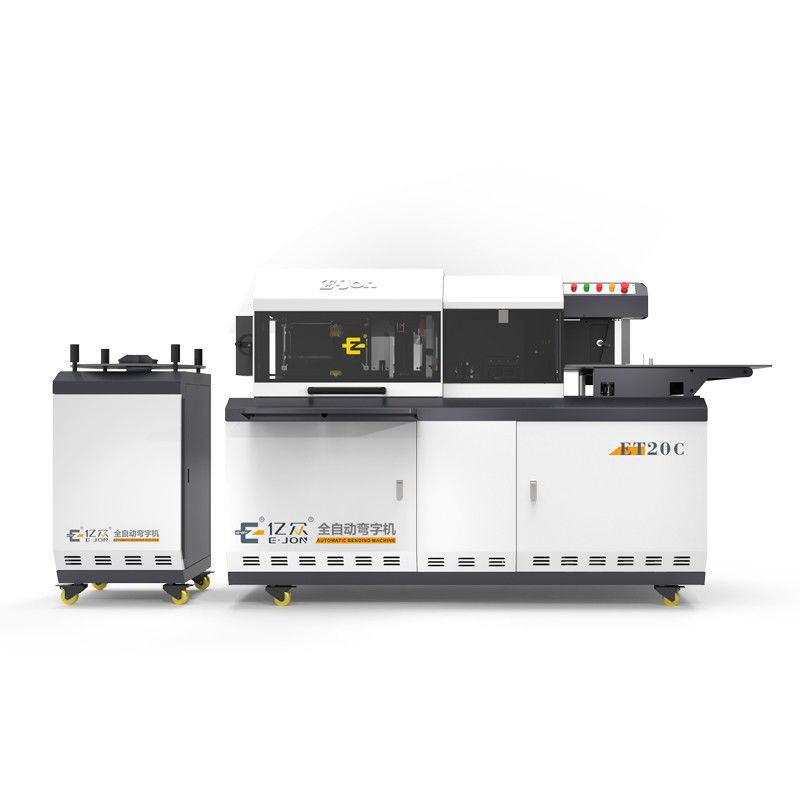

ALLOY material processing EJON ET20C V-cutting flanging channel letter bending machine

Large Image : ALLOY material processing EJON ET20C V-cutting flanging channel letter bending machine

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Minimum Order Quantity:	5 sets
Price:	$19,800.00/sets >=5 sets

Contact Now

ALLOY material processing EJON ET20C V-cutting flanging channel letter bending machine

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Notching Function
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY, Brass / Copper, Stainless Steel, Carbon Steel	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	800
Key Selling Points:	Multifunctional	Applicable Industries:	Retail, Energy & Mining, Advertising Company, Restaurant, Construction Works , Building Material Shops
Showroom Location:	Egypt, Turkey, Viet Nam, Brazil, Saudi Arabia, India, Russia, Spain, Thailand, South Korea	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Function:	Nocthing	Keyword:	V-cutting

Product Description

Product Application

1.The machine is equipped with automatic cutting function, which can automatically cut the processed strip and realize automatic operation of the machine.
2.Notching, folding, cutting with independent research and developed software, realize the automatic operation and saving manpower.
3.The notching and folding controlled by servo motors which ensure the notching strength and stability.
4.Material feeding, cutting, bending and notching all are controlled by imported servo system which is high speed, high efficiency and high stability.
5.Feeding adopts double manipulator and double guide rail to ensure the smooth and without material deformed.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding system
Slotting System	Plane cutter
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate,
Material Height	20-200mm
Material Thickness	0.4~1.0mm
Accuracy	±0.1mm
Min. Bending Angle	R6
File Format	Dxf.
Power	AC220V、50Hz、2.0Kw
V-cut method/angle	V-cut method/angle 30°/120°
Control System	6 axis control system (4 servo axis control)

Detailed Images

Double ball screw feeding system

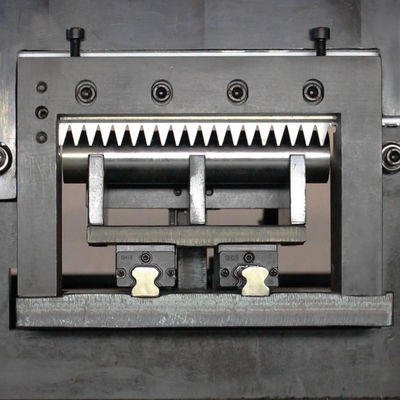

Imported cutting knife

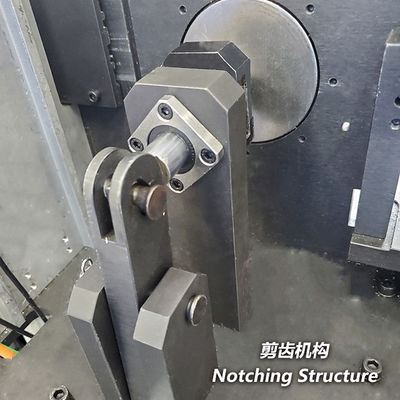

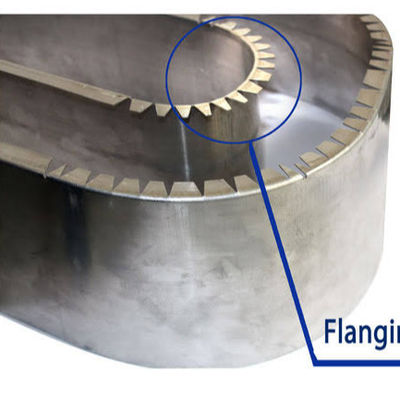

Flanging & Notching part

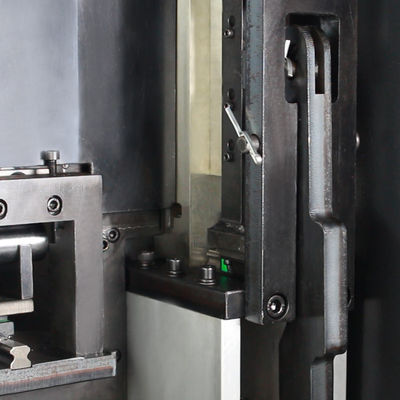

Final Cutting system

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	225* 80 * 176cm
Weight	850
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
