Stainless Steel And Aluminum Letter Bending Machine EJON T13H CNC With Two Cutters

Large Image : Stainless Steel And Aluminum Letter Bending Machine EJON T13H CNC With Two Cutters

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON
Certification:	ce

Payment & Shipping Terms:

Price:	$9,800.00/sets 1-2 sets
Packaging Details:	fumigation wooden box
Supply Ability:	1000 Set/Sets per Year

Contact Now

Stainless Steel And Aluminum Letter Bending Machine EJON T13H CNC With Two Cutters

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Multi-functional
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Plastic, PVC, Aluminum, Stainless Steel, Aluminum Profile	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	550
Key Selling Points:	High-accuracy	Applicable Industries:	Retail, Advertising Company
Showroom Location:	Egypt, Viet Nam, India, Russia, Spain, Thailand, UAE, Malaysia, Australia	Raw Material:	Sheet / Plate Rolling
Power:	CNC	Name:	Bending Machine
Application:	Stainless Plate Bending, Aluminium	After-sales Service Provided:	Field Maintenance And Repair Service
Port:	Tianjin Port

Product Description

Product Application

T13H: 4 sets of Delta servo motors control system.

1. Aluminum profile frame and chrome-faced.

2. The specially designed extra long alternate feeding mechanism.

3. Double ball screws drive make it more powerful, more fast and higher precision.The mechanical hand feeding design,continuously feeding by the two clamps, can avoid feeding slipping and improve feeding precision.

It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and resin words, etc.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding device
Slotting System	Plane cutter and alloy milling cutter system
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate, Aluminium profile
Material Height	Stainless steel,Galvanized steel,Aluminum plate:20~130mm/ Aluminum profile:20-100mm
Material Thickness	0.4-1.2mm
Control System	4 axis servo control system
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V,50Hz,3.0Kw
Air Supply	0.6m3/Min
Total Weight	550Kg

Main Features

1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.

2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.

3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc.) which ensure the strong stability.

4) 4 sets of servo control system.

Detailed Images

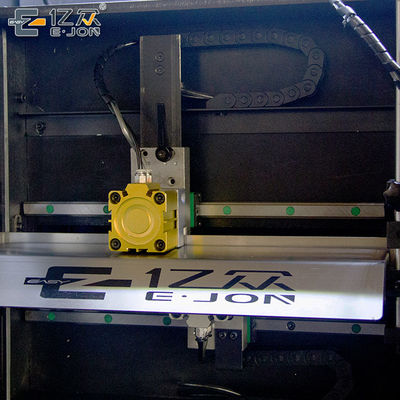

Feeding system

The mechanical hand feeding design, continuously feeding by the two clamps which can avoid feeding slipping and improve feeding precision.

Cutting system

Wheel cutter and plane cutter for aluminum profile and stainless steel materials

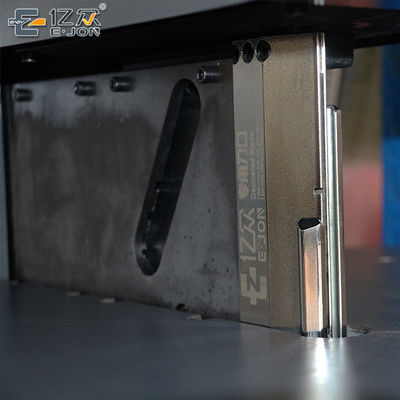

Bending system

Alternative double benders bending system, fast bending speed, high accuracy.

Punching holes

Making holes automatically to make the producing sign letters easier.

Supporting Facility

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

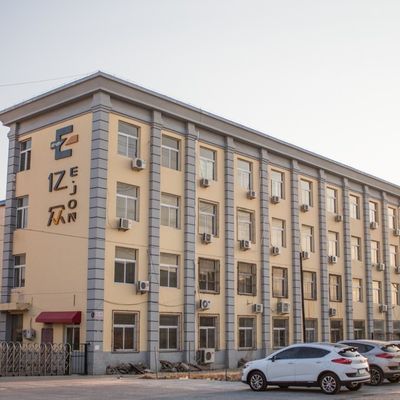

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1600(L) * 750 (W) * 1620(D)
Weight	550KG
Packaging Details	1.The normal package is wooden box(Size: LWH). 2. Customers special request.
