Ejon Channel Letter Fabrication Machine with Double Blade Alternate Bending System

Large Image : Ejon Channel Letter Fabrication Machine with Double Blade Alternate Bending System

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	Ejon

Payment & Shipping Terms:

Minimum Order Quantity:	5 sets
Price:	$10,000.00/sets >=5 sets

Contact Now

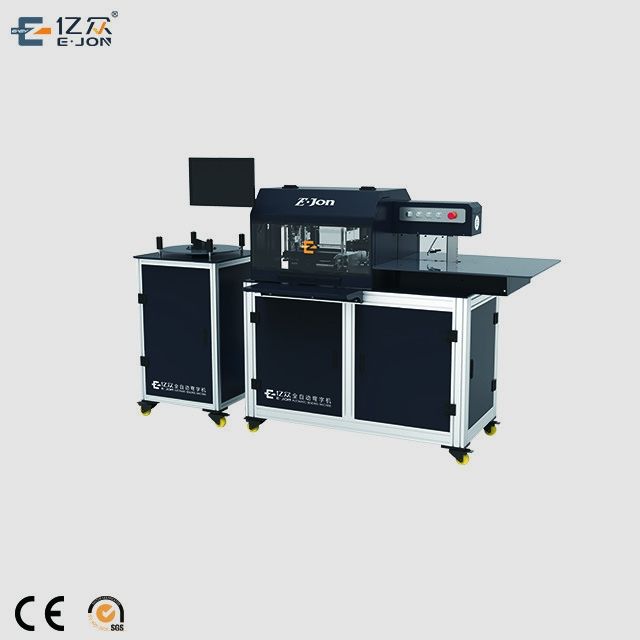

Ejon Channel Letter Fabrication Machine with Double Blade Alternate Bending System

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2024
Warranty Of Core Components:	1 Year	Core Components:	Engine, Motor
Material / Metal Processed:	Plastic, Aluminium Alloy, Aluminum, ALLOY, Stainless Steel	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	500
Key Selling Points:	Multifunctional	Applicable Industries:	Manufacturing Plant, Advertising Company
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Germany, Viet Nam, Brazil, Saudi Arabia, Russia, Thailand, South Korea	Machine Type:	Metal Letter Bending Machine
Function:	Auto Feeding+slotting+bending	Available Material:	SS, Galvanized Plate, Aluminum Plate And Super Sign Aluminum Profile
Bending System:	Double Blade Alternate Bending System	Operation Principle:	High Precision Automatic Feeding
Material Width:	20-130mm	Material Thickness:	0.4~1.2mm
After-sales Service Provided:	Video Technical Support, Online Support	File Format:	Dxf.PIt.Ai
Slotting System:	Plane Cutter/milling Wheel Cutter

Product Description

Product Application

T13: 4 sets of Delta servo motors control system, SMC pneumatic component.

1. Aluminum profile frame and chrome-faced.

2. The specially designed extra long alternate feeding mechanism.

3. Double ball screws drive make it more powerful, more fast and higher precision.The mechanical hand feeding design,continuously feeding by the two clamps, can avoid feeding slipping and improve feeding precision.

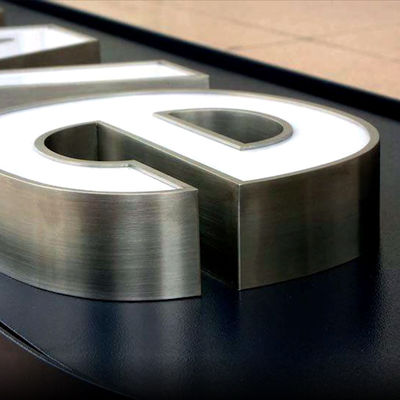

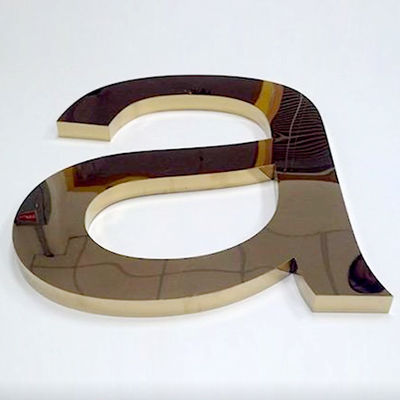

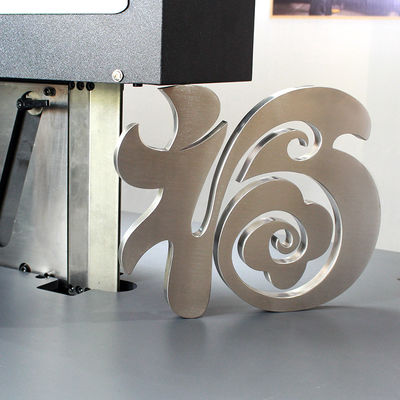

It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and resin words, etc.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding device
Slotting System	Plane cutter and alloy milling cutter system
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate, Aluminium profile
Material Height	Stainless steel、Galvanized steel、Aluminum plate:20~130mm/ Aluminum profile:20-100mm
Material Thickness	0.4-1.2mm
Control System	4 axis servo control system
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V、50Hz、3.0Kw
Air Supply	0.6m3/Min
Total Weight	500Kg

Main Features

1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.

2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.

3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc.) which ensure the strong stability.

4) 4 sets of Delta servo control system,SMC pneumatic component,chrome-faced,computer and air pump.

Detailed Images

Machine Parts

The mechanical hand feeding design, continuously feeding by the two clamps which can avoid feeding slipping and improve feeding precision.

Main Features

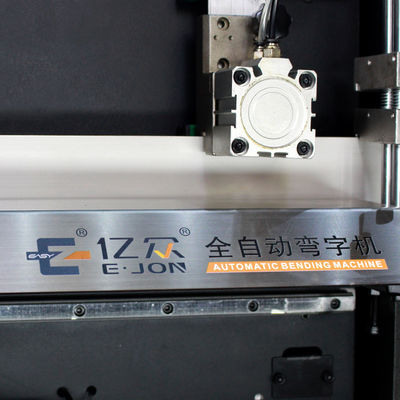

SMC pnnuematic compenent

Machine Parts

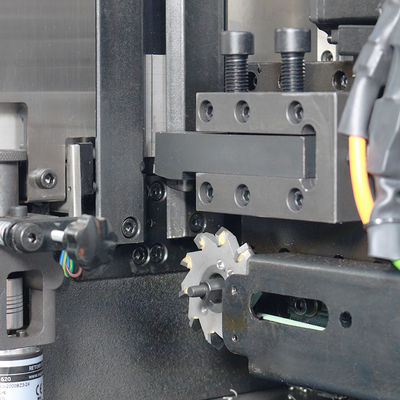

Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel; using milling cutter for Aluminum plate and Aluminum profiles.

Main Features

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.

Supporting Facility

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.
