Customized EJON E9 3D LED Channel Letter Signs Building Machine 220KG Customized Sign

Large Image : Customized EJON E9 3D LED Channel Letter Signs Building Machine 220KG Customized Sign

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON
Certification:	CE

Payment & Shipping Terms:

Price:	$5,200.00/sets 1-2 sets
Packaging Details:	export wooden case
Supply Ability:	5000 Set/Sets per Year

Contact Now

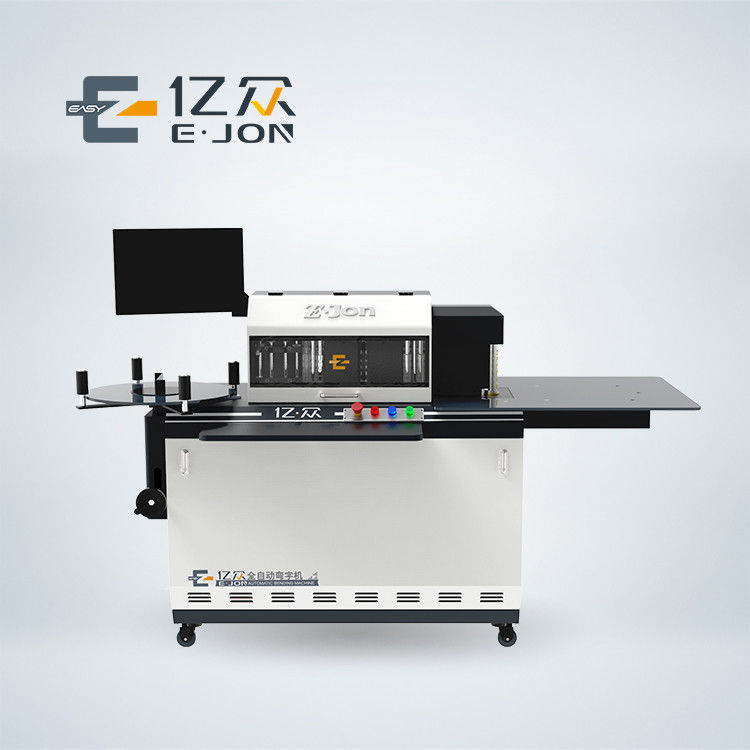

Customized EJON E9 3D LED Channel Letter Signs Building Machine 220KG Customized Sign

Description

Condition:	New	Machine Type:	Roller-Bending Machine
Raw Material:	Sheet / Plate Rolling	Material / Metal Processed:	Aluminum Profile,aluminum Plate,aluminum Sheet
Power:	CNC	Automation:	Automatic
Extra Services:	Slotting & Notching	Year:	2019
Warranty:	More Than 5 Years	After-sales Service Provided:	Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support
Weight:	220KG	Thickness:	0.4-1.2mm
Height:	20-130mm	Port:	Tianjin

Product Application

Software and Hardware Customized EJON E9 3D LED Channel Letter Signs Building signs waterproof aluminium profile bending machine aluminum channel letter bending machine

EJON E9 3D signs and channel letter making tools full function auto CNC channel aluminum letter bender machine

Exclusive design of aluminum profile bending machine,with both positive and negative double side slotting methods, slotting can be realized at any angle.Independent research and development of the software system, with the material database, arc high, easy to deal with small angle arc, large angle extrusion arc, to achieve the perfect match with the letter.

SPECIFICATIONS
Feeding System	Roller circulation feeding system
Slotting System	Alloy milling cutter slotting system
Bending System	Double bends bending system
Suitable Material	Flat Aluminum , Aluminium profile,Trim cap aluminum, Customized for different Materials
Material Height	20~130mm
Material Thickness	0.4~1.2mm
Control System	4 axis control system
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V,50Hz,2.0Kw
Air Supply	0.6m3/Min
Total Weight	200KG

Detailed Images

Main Features

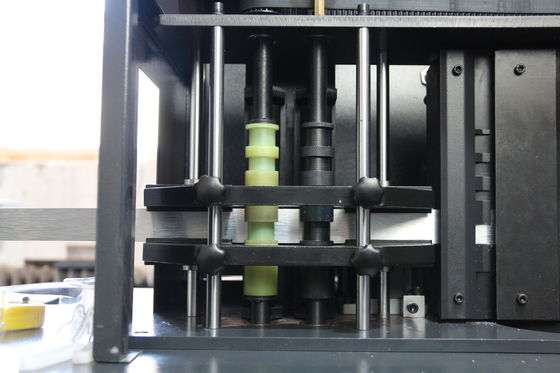

Alloy milling cutter slotting system for Aluminum plate and Aluminum profiles.

Main Features

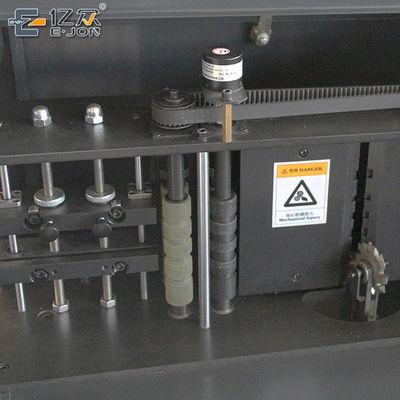

The motors ensure fast and accurate processing.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

Title goes here.

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1320(L) * 720 (W) * 1440(D)
Weight	200KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
