ET20C Trim Cap Aluminum 2mm Flat AL SS Iron Automatic Notching and V-Cutting Flanging Channel Letter Bending Machine

Name: ET20C Trim Cap Aluminum 2mm Flat AL SS Iron Automatic Notching and V-Cutting Flanging Channel Letter Bending Machine
Brand: Tianjin Ejon Flying Science And Technology Co., Ltd.
Availability: InStock

All Products

Steel Deburring Machine
(27)

Channel Letter Equipment
(291)

Channel Letter Bending Machine
(161)

Laser Welder Machine
(6)

Metal Sign Grinding Machine
(1)

CNC Letter Slotting Machine
(1)

CNC Laser Cutting Machine
(1)

CNC Router Machine
(1)

3D Printer Machine
(1)

Certification

I'm Online Chat Now

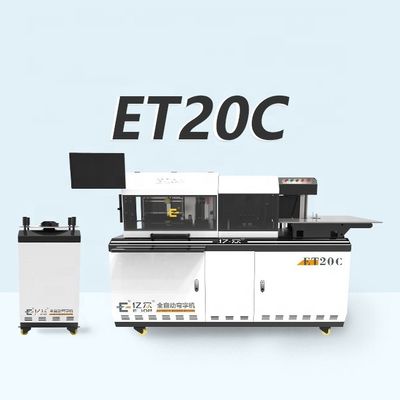

ET20C Trim Cap Aluminum 2mm Flat AL SS Iron Automatic Notching and V-Cutting Flanging Channel Letter Bending Machine

Large Image : ET20C Trim Cap Aluminum 2mm Flat AL SS Iron Automatic Notching and V-Cutting Flanging Channel Letter Bending Machine

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON
Certification:	CE SGS

Payment & Shipping Terms:

Price:	$21,000.00/sets 1-4 sets
Packaging Details:	The export wooden box

Contact Now

ET20C Trim Cap Aluminum 2mm Flat AL SS Iron Automatic Notching and V-Cutting Flanging Channel Letter Bending Machine

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY, Brass / Copper, Stainless Steel, Carbon Steel, Stainless Steel,Galvanized Sheet,Aluminum Plate,Aluminum Profile	Automation:	Automatic
Year:	2022	Warranty:	1 Year
Weight (KG):	800	Key Selling Points:	Multifunctional
Applicable Industries:	Advertising Company, Restaurant, Construction Works , Building Material Shops	Showroom Location:	Egypt, Turkey, Viet Nam, Brazil, Saudi Arabia, India, Russia, Spain, Thailand, South Korea, Ukraine, Malaysia
Machine Type:	Roller-Bending Machine	Extra Services:	Flanging & Notching
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Thickness:	0.4-1.2mm
Height:	10-200mm

Product Description

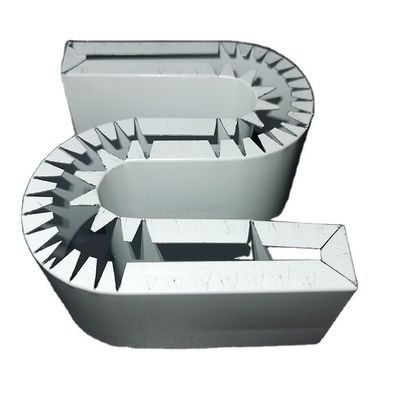

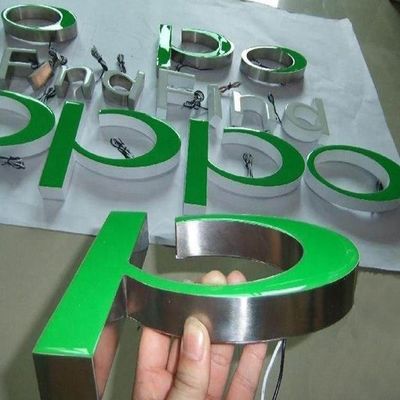

Product Application

EJON Luminous signs brimless letter ET20C 200MM multifunctional stainless steel aluminum profile channel letter bending machine tps cnc channel letter bending machine 3d letters bending machine automatic notching flanging and cutting

Multifunction channel letter bending machine,Using mechanical hand alternately feeding structure,the stability of the feeding process is effectively guaranteed. Double ball screw with nylon gear, the feeding speed of the machine is greatly improved. The material clamp is made of structural castings,avoid scratching to the material while improving the feeding holding power.tps cnc channel letter bending machine

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding system
Slotting System	Plane cutter and alloy milling cutter (double sides cutting)
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate,
Material Height	Stainless steel,Galvanized steel,Aluminum plate
Material Thickness	0.4~1.0mm
Accuracy	±0.1mm
Min. Bending Angle	R6
File Format	Dxf.
Power	AC220V、50Hz、2.0Kw
V-cut method/angle	V-cut method/angle 30°/120°
Control System	6 axis control system (4 servo axis control)

Main Features

1) ;The monobloc casting of Bending Mechanism has high molding degree which ensure the bending speed and stability.

2) The casting on Clamping increases the grasping force, meanwhile does not scratch the material;

3) The double ball screw of feeding design ensures the feeding speed and precision as well as stability;

Detailed Images

Machine Parts

The double feeding holder ensures the smooth feeding and avoid warping.

Main Features

The monobloc casting of Bending Mechanism has high molding degree which ensure the bending speed and stability.

Machine Parts

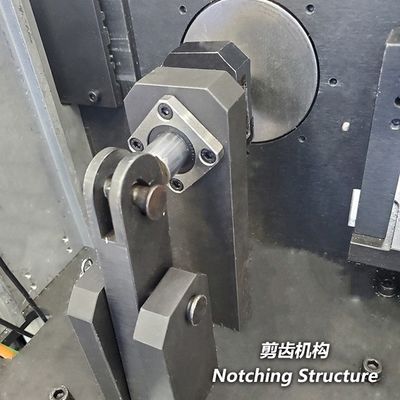

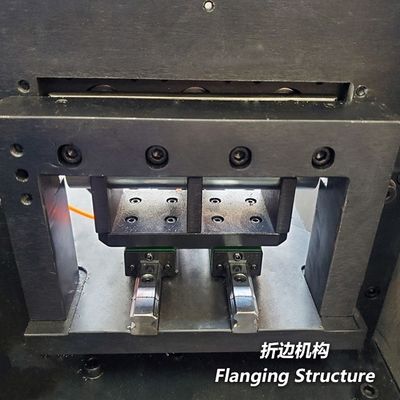

The notching and flanding are controlled by servo system,which is high precision,fast speed,strong stability.

Main Features

Steel coupling ensures the bending molding and bending speed.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1330(L) * 740 (W) * 1500(D)
Weight	350
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	1330(L) * 740 (W) * 1500(D)
Weight	350KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
