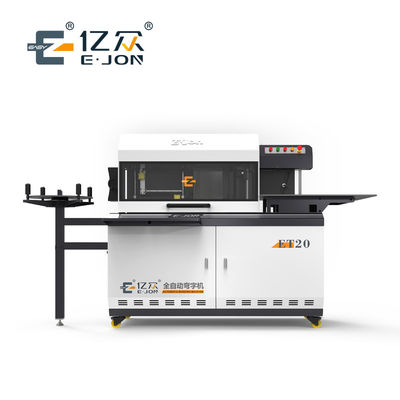

EJON ET20 200MM Multifunctional Front and Back Slotting Aluminum Trimcap Stainless Steel Channel Letter Bending Machine

Large Image : EJON ET20 200MM Multifunctional Front and Back Slotting Aluminum Trimcap Stainless Steel Channel Letter Bending Machine

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON
Certification:	ce

Payment & Shipping Terms:

Price:	$15,500.00/sets 1-2 sets
Packaging Details:	The export wooden box
Supply Ability:	3000 Set/Sets per Year

Contact Now

EJON ET20 200MM Multifunctional Front and Back Slotting Aluminum Trimcap Stainless Steel Channel Letter Bending Machine

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2022
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY, Stainless Steel, Carbon Steel, Stainless Steel,Galvanized Sheet,Aluminum Plate,	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	700
Key Selling Points:	Multifunctional	Applicable Industries:	Advertising Company, Building Material Shops
Showroom Location:	Egypt, Turkey, Viet Nam, Brazil, Saudi Arabia, India, Russia, Spain, Thailand, South Korea, Ukraine, Malaysia	Machine Type:	Roller-Bending Machine
Product Name:	Channel Letters Bender Machine	Thickness:	0.4-1.2mm
Height:	200-200mm	Slotting:	Front And Back Both Sides Slotting
After-sales Service Provided:	Online Support,Video Technical Support	After Warranty Service:	Spare Parts
Function:	Auto Feeding+bending+slotting	Bending System:	Double Blade Alternate Bending System
Port:	China

Product Description

Product Application

EJON Luminous signs brimless letter ET20 200MM multifunctional stainless steel aluminum profile channel letter bending machine EZLETTER tps cnc channel letter bending machine 3d letters bending machine automatic notching flanging and cutting

Multifunction channel letter bending machine,Using mechanical hand alternately feeding structure,the stability of the feeding process is effectively guaranteed. Double ball screw with nylon gear, the feeding speed of the machine is greatly improved. The material clamp is made of structural castings,avoid scratching to the material while improving the feeding holding power.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding system
Slotting System	Plane cutter and alloy milling cutter (double sides cutting)
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum flat,trim cap aluminum profile
Material Height	20-200mm
Material Thickness	0.4~1.0mm
Accuracy	±0.1mm
Min. Bending Angle	R6
File Format	Dxf.
Power	AC220V、50Hz、2.0Kw
Weight	700KG
Control System	7 axis control system (3 servo axis control)

Main Features

1) ;The monobloc casting of Bending Mechanism has high molding degree which ensure the bending speed and stability.

2) The casting on Clamping increases the grasping force, meanwhile does not scratch the material;

3) The double ball screw of feeding design ensures the feeding speed and precision as well as stability;

Detailed Images

Machine Parts

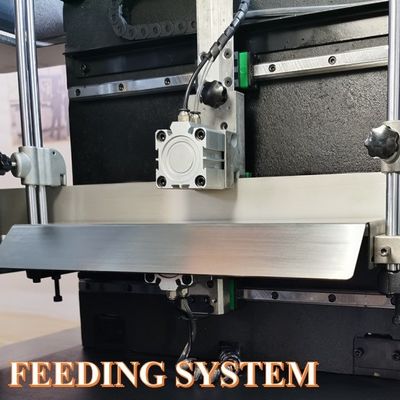

The feeding structure adopts double ball screw matched with nylon gear transmission ensuring the precise positioning ,smooth feeding,greatly improving the feeding speed and stability.

Main Features

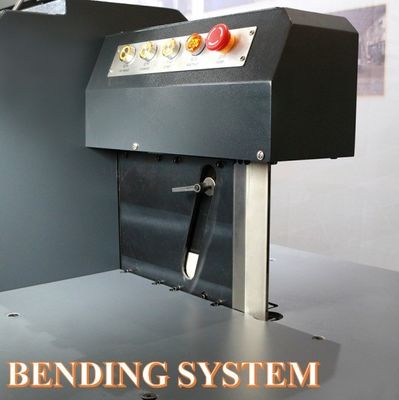

Max can process 200mm width materials.the bending system adopts structural casting and Casting molding ,ensure the stabilify of high-speed bending

Machine Parts

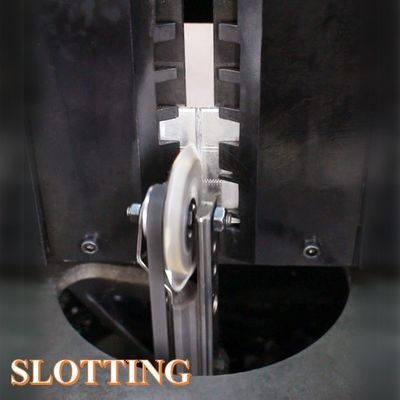

Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel,using milling cutter for Aluminum plate and Aluminum profiles.milling cutter can slot front and back both sides for different angle degree

Main Features

Steel coupling ensures the bending molding and bending speed.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1330(L) * 740 (W) * 1500(D)
Weight	350
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	1330(L) * 740 (W) * 1500(D)
Weight	350KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
