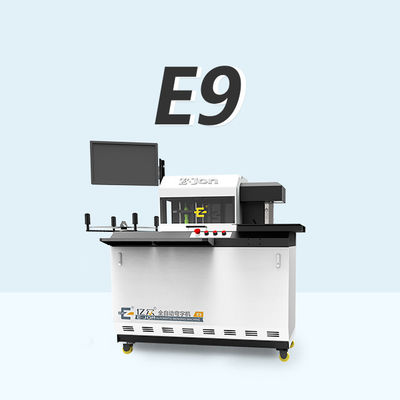

CE Certificate E9 Edged Channelume Trim Cap Lightbox Letter Board Metal LED Sign Aluminum Channel Letter Bending Machine

Large Image : CE Certificate E9 Edged Channelume Trim Cap Lightbox Letter Board Metal LED Sign Aluminum Channel Letter Bending Machine

Product Details:

Place of Origin:	China
Brand Name:	EJON
Certification:	ce

Payment & Shipping Terms:

Price:	$5,500.00/sets 1-2 sets
Packaging Details:	Export wooden case
Supply Ability:	2000 Set/Sets per Year

Contact Now

CE Certificate E9 Edged Channelume Trim Cap Lightbox Letter Board Metal LED Sign Aluminum Channel Letter Bending Machine

Description

Condition:	New	Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY, Brass / Copper, Stainless Steel, Carbon Steel
Automation:	Automatic	Year:	2020
Warranty:	1 Year	Weight (KG):	200
Key Selling Points:	High-accuracy	Applicable Industries:	Advertising Company, Building Material Shops
Showroom Location:	Egypt, Turkey, Viet Nam, Russia, Spain, Thailand, South Korea, Algeria, Malaysia	Thickness:	0.4-1.2mm
Height:	20-130mm	Weight:	200kg
Product Name:	Channel Letter Bender Machine	Function:	Auto Feeding+bending+slotting
After-sales Service Provided:	Online Support, Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Free Spare Parts, Video Technical Support	After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:	Turkey, Viet Nam, Spain, Thailand	Port:	Tianjin ,qingdao,weihai,shanghai,

Product Description

Product Application

CE certificate EJON E9 trim cap Custom Led Information Board metal Led sign bending machine aluminum channel letter bending machine

: Exclusive design for aluminum profile and aluminum plate bending with front and back double side slotting methods. The slotting can be at any angle. Independent research and development of the software system furnish with the material database. Easy to deal with small angle arc and large angle arc to achieve the perfect match with the latter.

SPECIFICATIONS
Feeding system	Customized feeding roller

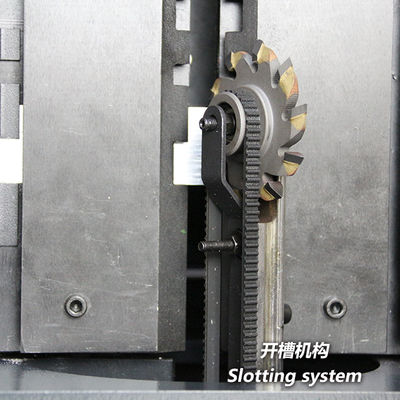

Slotting System	Rotatable alloy milling cutter

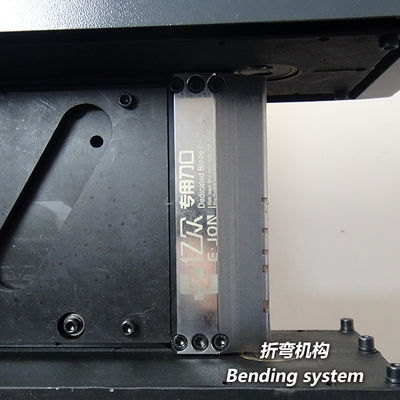

Bending System	Double blade alternate bending system
Suitable Material	All kind of Aluminum plate and Aluminium profile
Material Height	20~130mm
Material Thickness	0.4-1.2mm
Control System	4 axis control system
Min. Bending Angle	R10
File Format	Dxf.Plt.Ai
Power	AC220V,50Hz,3.0Kw
Air Supply	0.6m3/Min
Total Weight	200Kg

Main Features

1) The customized feeding roller ensures the feeding precision, meanwhile, does not scratch the meterial..

2) The well designed bending mechanism inproves themokding degree.

3) The independent lifting pallet can fit all sizes of aluminium.

Detailed Images

Machine Parts

The customized feeding design, continuously feeding to avoid feeding slipping and improve feeding precision.

Main Features

The control motors are all used the famous brand.

Machine Parts

The lifting pallet can fit all sizes of aluminum.

Main Features

The bending can be beating oand extruding which can perfect bend big and small angle arc.

Supporting Facility

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1410(L) * 750 (W) * 1560(D)
Weight	460KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	660(L) * 660(W) * 1110 (D)
Weight	45KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
