E9 The Perfect Combination Of Durability And Precision Bending For Sign Makin

Large Image : E9 The Perfect Combination Of Durability And Precision Bending For Sign Makin

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$5,500.00/sets 1-2 sets
Packaging Details:	export wooden case
Supply Ability:	5000 Set/Sets per Year

Contact Now

E9 The Perfect Combination Of Durability And Precision Bending For Sign Makin

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2023
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Aluminum, Aluminum Profile,aluminum Plate,aluminum Sheet	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	200
Key Selling Points:	High-accuracy	Applicable Industries:	Machinery Repair Shops, Advertising Company, Building Material Shops
Showroom Location:	Egypt, Viet Nam, Russia, Spain, Thailand, South Korea	Machine Type:	Automatic Aluminum Letter Bending Machine
Function:	Auto Feeding+bending+slotting	Weight:	200KG
Thickness:	0.4-1.2mm	Height:	20-130mm
Min.Bending Angle:	R6	Suitable Material:	Aluminum Plate And Profile
Control System:	4 Axis Control System	Slotting Method:	Milling Wheel Cutter
Feeding Method:	Rolling Continuous Feeding	Port:	Tianjin

Product Description

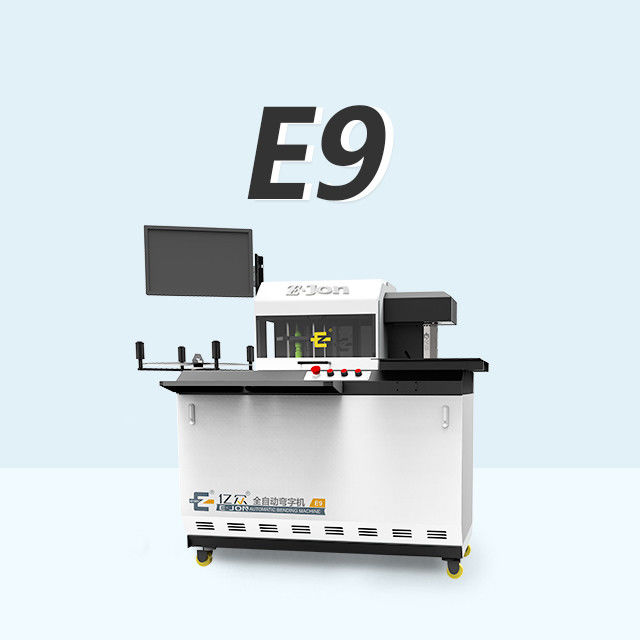

Ejon E9 Neon 3D Sign Board Led Lettering Machine

Specialized in Aluminum Letters Bending

SPECIFICATIONS
Feeding System	Roller circulation feeding system
Slotting System	Alloy milling cutter slotting system
Bending System	Double bends bending system
Suitable Material	Flat Aluminum , Aluminium profile,Trim cap aluminum, Customized for different Materials
Material Height	20~130mm
Material Thickness	0.4~1.2mm
Control System	4 axis control system
Min. Bending Angle	R6
File Format	Dxf.Plt.
Power	AC220V,50Hz,2.0Kw
Total Weight	200KG

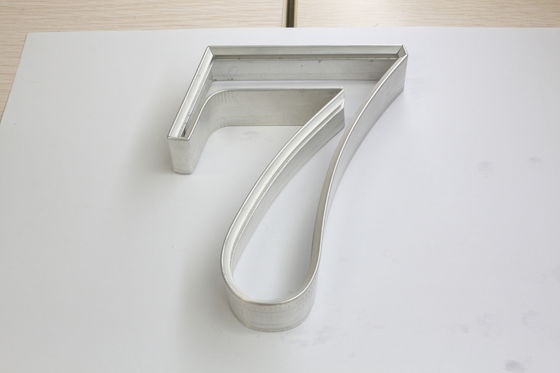

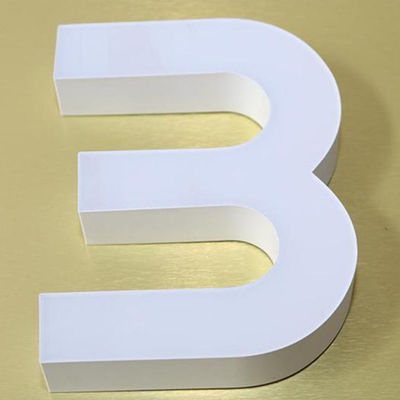

Sample Display

Detailed Images

Feeding system

Alloy milling cutter slotting system for Aluminum plate and Aluminum profiles.

The feeding support adopts an integral casting structure, which effectively avoids the deformation generated during the feeding and ensures the stability of feeding.

Slotting sysytem

The motors ensure fast and accurate processing.

The slotting system can realize the from and back double sides slotting

Bending system

The bending system adopts structural casting and is intergrally cast to ensure the stability of high-speed bending.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

Title goes here.

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine

* Training how to use the machine.

* Engineers available to service machinery overseas.

Any question, feel free to get in touch with me!

Just a little click here!

Packing & Delivery

* Size : 1220*660*1290mm

* Weight : 250KG

* Packaging details : The normal package is fumigated wooden box(Size: L*W*H). If container is too tight, we will use PE film for packing or pack it according to customers' special request.
