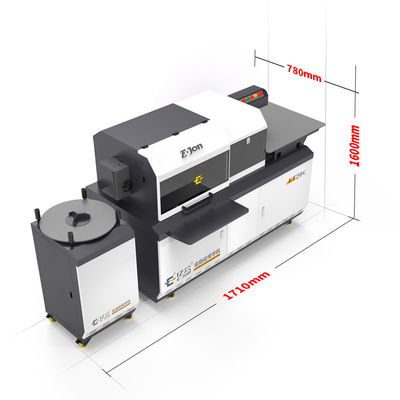

Technical Support Online Ejon ET20C LED Alphabet Light Channel Letter Bending Machine

Large Image : Technical Support Online Ejon ET20C LED Alphabet Light Channel Letter Bending Machine

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	Ejon

Payment & Shipping Terms:

Minimum Order Quantity:	5 sets
Price:	$20,000.00/sets >=5 sets

Contact Now

Technical Support Online Ejon ET20C LED Alphabet Light Channel Letter Bending Machine

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2024
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, Stainless Steel	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	800
Key Selling Points:	Multifunctional	Applicable Industries:	Retail, Printing Shops, Manufacturing Plant, Advertising Company
Showroom Location:	Egypt, Turkey, United States, Viet Nam, Brazil, Russia, Spain, Thailand, South Korea	Product Name:	Channel Letter Bending And Flanging Machine
Function:	Auto Feeding+bending+slotting+notching	CNC Or Not:	CNC Letter Auto Bending Machine
Operation Principle:	High Precision Automatic Feeding	Control System:	6 Axis Control System (4 Servo Axis Control)
Applicable Material:	Stainless Steel, Galvanized Plate, Aluminum Plate	Bending System:	Double Blade Alternate Bending System
Bending Thickness:	0.4~1.0mm	Slotting System:	Plane Cutter
Extra Services:	Technical Support Online, Video

Product Description

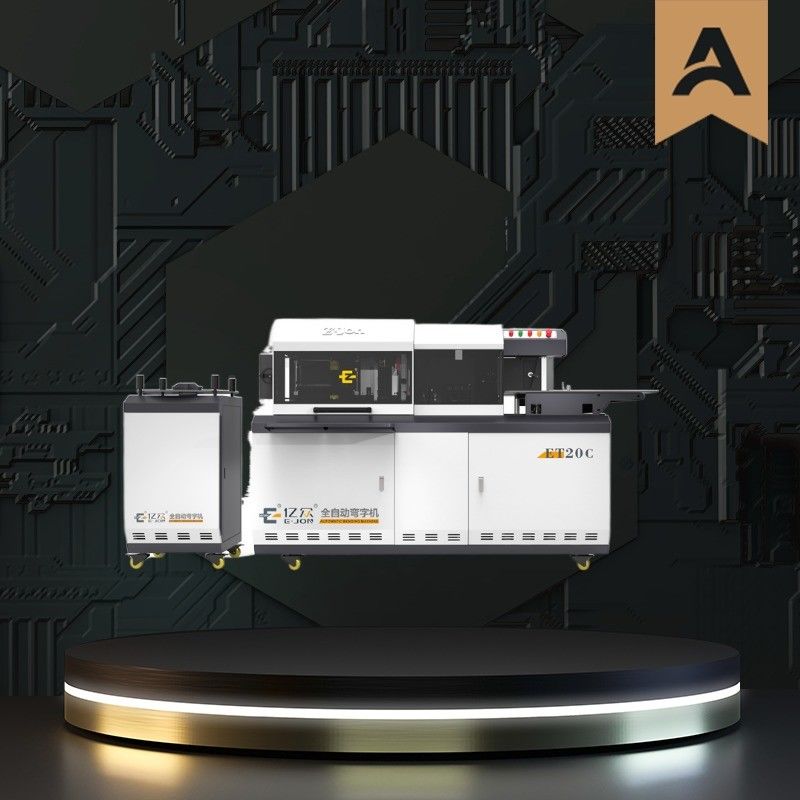

EJON ET20C Full-Automatic Notching and Flanging

Channel Letter Bending Machine

curvadora de perfiles

FEEDING SYSTEM

1. The material clamps are casted which can avoid scratching the material, meanwhile improving the feeding holding. Using air pressure to press the material, avoid material uneven and ensure the smooth feeding.

2. The double ball screw is matched with nylon gear transmission for precise positioning, which greatly improves the feeding speed and stability of the machine.

SLOTTING SYSTEM

1. The slotting knife adopts high strength alloy cutter, which can slot all kinds of materials. Each knife has 8 angles, no need to sharpen, greatly improve the working life.

2. The linear guideway is matched with the ball screw, with 750W high-power servo motor, greatly improve the slotting speed and stability.

NEW FUNCTION

1. ET20C full-automatic notching and flanging bending machine adds the function of automatic notching and cutting for flat metal material on the basis of existing bending machine.

2. The notching and cutting are controlled by servo system, which is of high precision, fast speed, strong stability.

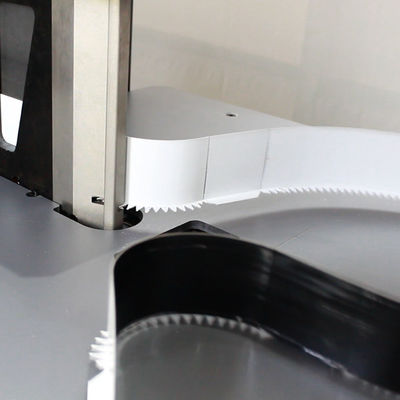

Notching

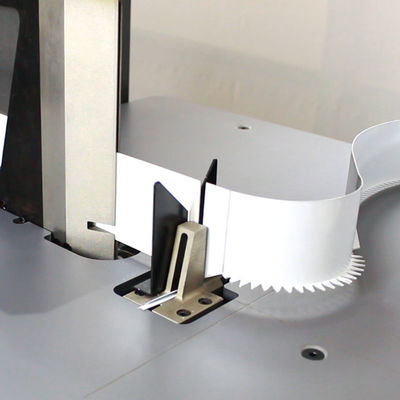

Cutting

High-power servo motor

BENDING SYSTEM

1. Double-knife alternate bending structure. The bending knife structure is casted by ductile iron, which has good shock absorption and high structural strength, therefore reduces number of parts splicing.

2. High-power servo motor supports high-speed bending, avoiding the deformation of bending machanism, effectively improves the positioning accuracy and the stability of the
high-speed bending.

Specification

ITEM	VALUE
Working Space	2200mm1800mm1600mm
Weight (KG)	800
Power	AC220V、50Hz、2.0kW
File Format	Dxf.Plt.Ai
Function	Auto Feeding+bending+slotting+notching
Feeding System	Mechanical hands circulating clamping feeding
Accuracy	±0.1mm
Control System	6 axis control system (4 servo axis control)
Bending System	Double Blade Alternate Bending System
Suitable Material	Stainless steel, galvanized plate, Aluminum plate
Bending Thickness	0.4~1.0 mm
Min. Bending Angle	R6
Slotting System	Plane cutter
Slotting Trip	20~200mm

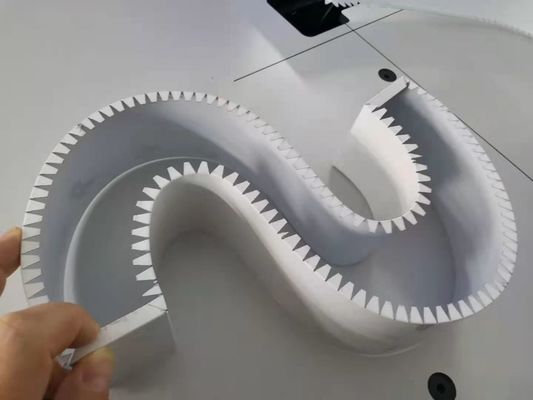

Letter Making

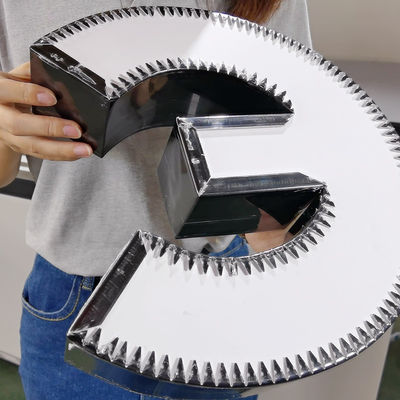

Finished Letters

Company Profile

Packing & Delivery

Item	Value
Package Size	1410mm780mm1600mm
Packing material	fumigated wooden case, PE film or according to customer's special request
Weight	750kg
Port	Tianjin port
Lead Time	1 Set: 7 days 2 Sets: 15 days >2: To be negotiated
Freight way	shipping, Land transportation

Exhibition

FAQ

1. Why Choose Us?

* Profesional Manufacturing

1. National patent technique of independent intelligent property right
2. More than 10 years of manufacturing experience in this industry
3. About 10,000 m² factory to guarantee the production, storage and supplying
* Easy to Operate
You’ll spend only a few minutes learning how to use the machine through the simple operation interface and our video
* Quality Services
1. You can get highly customized product according to your demand because of our self-developed software, which can greatly shorten the reconfiguration time and improve the work efficiency.
2. Pre-sale service: Inquiry and consulting support; Sample testing support; View our Factory.
3. After-sale service: Installand and use Training online or by telephone always at your service, no need to worry about any problem of the machine

2. How can we guarantee the quality?

IQC (Incoming Inspection) → IPQC (InPut Process Quality Control) → OQC (Outgoing Quality Control) → QA ( Finished product Quality Assurance) layer upon layer to ensure the quality and commitment to customer service 3. Do you have any other related machine or spare parts to sell? You can tell us your demand and we'll recommend a suitable one to you.
channel letter bending machine ( CLICK ME !)

handheld laser welding machine ( CLICK ME !)
channel letter welding machine ( CLICK ME !)
deburring machine ( CLICK ME !)
channel letter grinding machine ( CLICK ME !)

laser cutting machine ( CLICK ME !)
and related spare parts and materials.
You can buy all of these at a lower price especially when you have made a big order or need a long-term supply.

4. What services can we provide? Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES； Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T,L/C, Credit Card, Western Union, Cash; Language Spoken: English, Chinese, Spanish, French, Korean

5. How about the after-sale service?

We will respond to your demand within 24 hours via email or the platform's official communication tool, and send relevant
documents or materials remotely, providing technical support online.
In the case of non-man-made damage to the machine, within the scope of free parts agreed by our both part, we will send free parts within 48 hours (except imported parts or customized parts).

6. How to choose the channel letter bending machine? dobladora de letras corporeas

CLICK HERE TO GET A FREE QUOTATION !

For big letters making

Specially designed for making big letters: Landscape characters, Square letter, High side character, Hypotenuse letter

Aluminum only

Limited to process aluminum plate.

Single-function and Low price

Multiple materials Processing

Applicable for: stainless steel, aluminum plate, galvanized plate, aluminum profile etc.

High Performance-to-Price Ratio

Generally First Choice

Deburring machine

Effectively remove the metal burrs of laser cutting parts, stamping parts, machined parts, etc.

Letter edge grinding machine

To make the letter edge more smooth and round and get a wonderful appearance.

Laser welding machine

To weld the letter border together with the surface.
