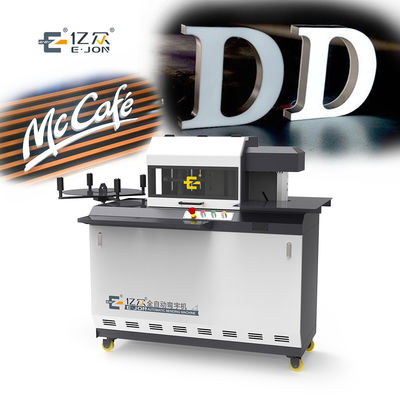

E8S CNC 3D Neon Letter Sign Bender Automatic Bending For Aluminum Strip Letters

Name: E8S CNC 3D Neon Letter Sign Bender Automatic Bending For Aluminum Strip Letters
Brand: Tianjin Ejon Flying Science And Technology Co., Ltd.
Price: 2.00 USD
Availability: InStock

All Products

Steel Deburring Machine
(27)

Channel Letter Equipment
(291)

Channel Letter Bending Machine
(161)

Laser Welder Machine
(6)

Metal Sign Grinding Machine
(1)

CNC Letter Slotting Machine
(1)

CNC Laser Cutting Machine
(1)

CNC Router Machine
(1)

3D Printer Machine
(1)

Certification

I'm Online Chat Now

E8S CNC 3D Neon Letter Sign Bender Automatic Bending For Aluminum Strip Letters

Large Image : E8S CNC 3D Neon Letter Sign Bender Automatic Bending For Aluminum Strip Letters

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$3,850.00/pieces 1-4 pieces
Packaging Details:	Wooden box
Supply Ability:	1000 Piece/Pieces per Year

Contact Now

E8S CNC 3D Neon Letter Sign Bender Automatic Bending For Aluminum Strip Letters

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Aluminum, Aluminum Profile	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	250
Key Selling Points:	Competitive Price	Applicable Industries:	Retail, Advertising Company, Construction Works
Showroom Location:	Egypt, Turkey, United Kingdom, United States, Viet Nam, Philippines, Brazil, Saudi Arabia, Pakistan, India, Russia, Spain, Thailand, Kenya, South Korea, UAE, South Africa, Ukraine, Japan, Malaysia, Australia	Product Name:	Channel Letter Bending Machine
After Sale Service:	Field Service, Online Support, Video Support	Function:	Aluminum Bending Machine
Processing Material:	Aluminum Flat Plate, Aluminum Profile	Bending Thickness:	Aluminum Profile 0.4-1.2mm, Aluminum Flat Plate:0.4-0.8mm
Material Width:	20-160mm	Bending System:	Double-bends Bending
Slotting System:	Milling Cutter Slotting System	FEEDING SYSTEM:	Rolling Typed Continuous Feeding System
Power:	AC220V, 50Hz, 2.0kW	Port:	Tianjin Port

Product Description

EJON E8S neon sign 3d LED channelume aluminum channel letter bending machine

latter bending machine, ماكينة الانحناء للحروف, dobladora de letras corporeas

* Exclusive design for aluminum profile and aluminum plate bending with positive and negative double side slotting methods.

* The slotting can be at any angle.

* The customized feeding roller ensures the feeding precision, meanwhile, does not scratch the material.

* The well designed bending mechanism improves the molding degree.

* The independent lifting pallet can fit all sizes of aluminum.

SPECIFICATIONS
Feeding system	Customized feeding roller
Slotting System	Rotatable alloy milling cutter
Bending System	Double blade alternate bending system
Suitable Material	All kind of Aluminum plate and Aluminium profile
Material Height	Aluminum plate: 20-130mm; Aluminum profile: 20-100mm
Material Thickness	0.4-1.2mm
Control System	4 axis control system
Min. Bending Angle	R10
File Format	Dxf.Plt.Ai
Power	AC220V, 50Hz, 3.0kW
Air Supply	0.6m³/min
Total Weight	220kg

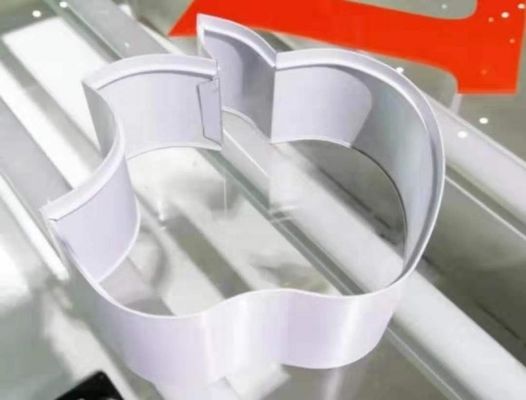

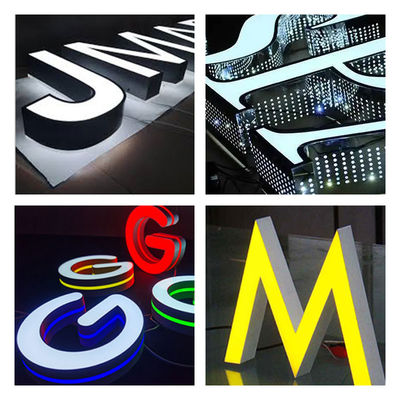

Finished Letters

Detailed Images

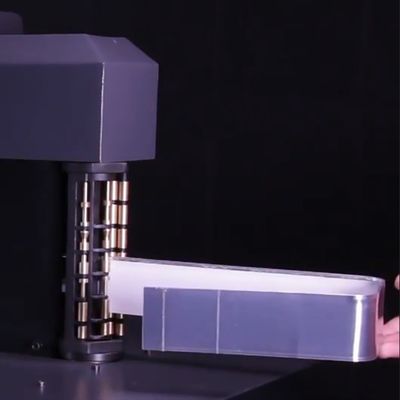

Roller feeding

The customized feeding design, continuously feeding to avoid feeding slipping and improve feeding precision.

Powerful brand motor

The control motors are all used the famous brand.

Cutting system

Rotated alloy wheel cutter, easy to cut all kinds of aluminum materials, channelume.

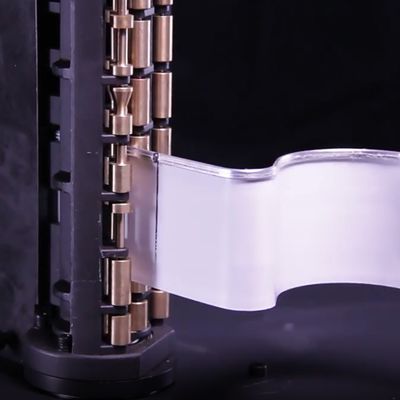

Copper bending system

Adjustable copper bender, easy to bend all kinds of aluminum materials and channelume

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.

Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4 kW, the gas flow is 0.6m³/min.

File Format

The software of bending machine is self-developed. Input file format supports .Dxf.Plt .AI .

We recommend using Coredraw or Adobe Illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the file.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Engineers available to service machinery overseas.

* Machine operation video and manual.

* Online support and video call support.

1.Whole machine with one year warranty.
2.Free training course at our plant or on line.
3.After the warranty period, we will provide the consumable parts at an agency price when you need replacement.
4.Before machine delivery, we will install all parts and test machine for you. We will take machine's working video and machine phone for you for checking, if confirmed there're no problem, then we'll deliver machine.
5.After machine arrived, you just need connect power supply, software etc, it's more easily for you. If you're worried, we can take a teaching video for you at that time. By the way, during the production of machine, we also can share the process with you.
6.As for training, firstly we'll take more teaching video for you, and we also can remote control, most important, if you need, we can provide our technicians for on-site training and on-site teaching. And if you have time, welcome to visit our company, you can operate and learn the machine by yourself.
7.After machine shipped, I'll prepare some documents, like B/L, Packing list, Commercial invoice, Sales contract, CE Certification for helping you pick up your machine.
