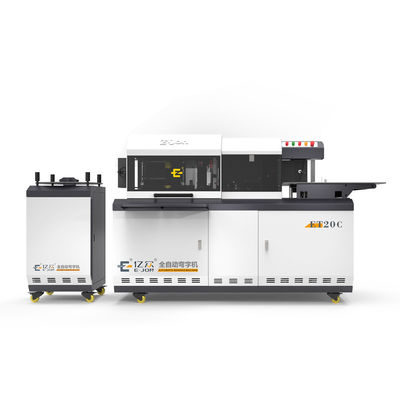

Ejon ET20C 3D Letter Sign Flange Channel Letter Bending Machine for Aluminum Plate

Name: Ejon ET20C 3D Letter Sign Flange Channel Letter Bending Machine for Aluminum Plate
Brand: Tianjin Ejon Flying Science And Technology Co., Ltd.
Availability: InStock

All Products

Steel Deburring Machine
(27)

Channel Letter Equipment
(291)

Channel Letter Bending Machine
(161)

Laser Welder Machine
(6)

Metal Sign Grinding Machine
(1)

CNC Letter Slotting Machine
(1)

CNC Laser Cutting Machine
(1)

CNC Router Machine
(1)

3D Printer Machine
(1)

Certification

I'm Online Chat Now

Ejon ET20C 3D Letter Sign Flange Channel Letter Bending Machine for Aluminum Plate

Large Image : Ejon ET20C 3D Letter Sign Flange Channel Letter Bending Machine for Aluminum Plate

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	Ejon

Payment & Shipping Terms:

Price:	$22,000.00/sets 1-2 sets
Packaging Details:	fumigated wooden case
Supply Ability:	2000 Set/Sets per Year

Contact Now

Ejon ET20C 3D Letter Sign Flange Channel Letter Bending Machine for Aluminum Plate

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2023
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY, Stainless Steel, Carbon Steel, Galvanized Sheet	Automation:	Automatic
Year:	2023	Warranty:	1 Year
Weight (KG):	800	Key Selling Points:	Multifunctional
Applicable Industries:	Retail, Printing Shops, Manufacturing Plant, Advertising Company	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Germany, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, India, Russia, Spain, Thailand, South Korea, Sri Lanka, Romania, Kazakhstan, Ukraine, Malaysia, Australia
Product Name:	Channel Letter Bending And Flanging Machine	Function:	Auto Feeding+bending+slotting+notching+flanging
CNC Or Not:	CNC Letter Auto Bending Machine	Operation Principle:	High Precision Automatic Feeding
Control System:	6 Axis Control System (4 Servo Axis Control)	Applicable Material:	Stainless Steel, Galvanized Plate, Aluminum Plate
Bending System:	Double Blade Alternate Bending System	Bending Thickness:	0.4~1.0mm
Slotting System:	Plane Cutter	Extra Services:	Technical Support Online, Video
Port:	Tianjin Port

Product Description

EJON ET20C Full-Automatic Notching and Flanging

Channel Letter Bending Machine

doblado de letras de publicidad

ET20C CNC Sign Bender is a high end channel letter bending machine which adds the function of automatic flanging, notching and cutting for flat metal material on the basis of existing bending machine. The notching and cutting are controlled by servo system, which is characterized by high precision, fast speed and strong stability.

Since its launch, it has become one of the most popular products among customers in the advertising industry.

CLICK HERE TO GET MORE DISCOUNT!

FEEDING SYSTEM

1. The material clamps are casted which can avoid scratching the material, meanwhile improving the feeding holding. Using air pressure to press the material, avoid material uneven and ensure the smooth feeding.

2. The double ball screw is matched with nylon gear transmission for precise positioning, which greatly improves the feeding speed and stability of the machine.

SLOTTING SYSTEM

1. The slotting knife adopts high strength alloy cutter, which can slot all kinds of materials. Each knife has 8 angles, no need to sharpen, greatly improve the working life.

2. The linear guideway is matched with the ball screw, with 750W high-power servo motor, greatly improve the slotting speed and stability.

NEW FUNCTION

1. ET20C full-automatic notching and flanging bending machine adds the function of automatic notching and cutting for flat metal material on the basis of existing bending machine.

2. The notching and cutting are controlled by servo system, which is of high precision, fast speed, strong stability.

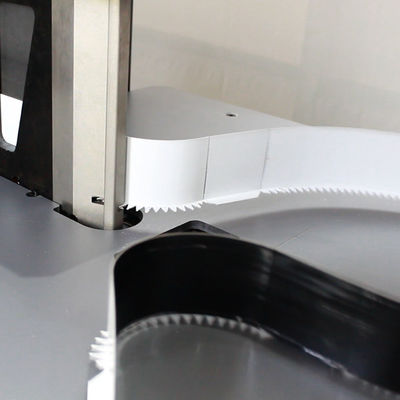

Notching

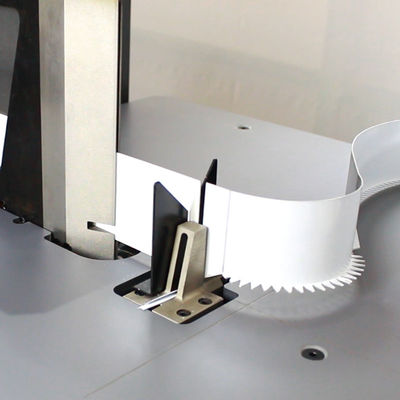

Cutting

High-power servo motor

BENDING SYSTEM

1. Double-knife alternate bending structure. The bending knife structure is casted by ductile iron, which has good shock absorption and high structural strength, therefore reduces number of parts splicing.

2. High-power servo motor supports high-speed bending, avoiding the deformation of bending machanism, effectively improves the positioning accuracy and the stability of the
high-speed bending.

Specification

ITEM	VALUE
Working Space	2200mm1800mm1600mm
Weight (KG)	800
Power	AC220V、50Hz、2.0kW
File Format	Dxf.Plt.Ai
Function	Auto Feeding+bending+slotting+notching
Feeding System	Mechanical hands circulating clamping feeding
Accuracy	±0.1mm
Control System	6 axis control system (4 servo axis control)
Bending System	Double Blade Alternate Bending System
Suitable Material	Stainless steel, galvanized plate, Aluminum plate
Bending Thickness	0.4~1.0 mm
Min. Bending Angle	R6
Slotting System	Plane cutter
Slotting Trip	20~200mm

Supporting facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software computer.
Configuration: XP system or Window7 32-bit system, and requires a PLC card slot to install the control card.

Pump

The equipment should be equipped with AIR compressor, we suggest that the selection of more than 4 kW, the gas flow is 0.6m³/min

File Format

The software of bending machine is self-developed. Import the format supports Dxf.Plt.Ai. We recommend using Coredraw or adobe illustrator to complete the file after the export file to Dxf.Plt.Ai format. Then open the operating software, select the document.

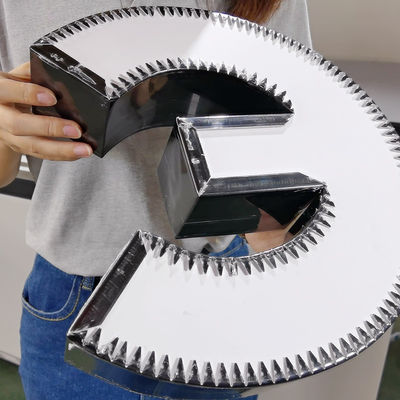

Finished Letters

Exhibition

Company Profile

CLICK HERE TO VISIT OUR STORE!

Customers' Feedback

Packing & Delivery

Item	Value
Package Size	1410mm780mm1600mm
Packing material	fumigated wooden case, PE film or according to customer's special request
Weight	750kg
Port	Tianjin port
Lead Time	1 Set: 7 days 2 Sets: 15 days >2: To be negotiated
Freight way	shipping, Land transportation

Our Service

Whole machine with one year warranty.

After the warranty period, we will provide the consumable parts at an agency price when you need replacement.

Before machine delivery, we will install all parts and test machine for you. If you need, we will take machine's working video for you to check. After confirmed there is no problem, then we'll deliver machine.

After machine shipped, I'll prepare some documents, like B/L, Packing list, Commercial invoice, Sales contract, CE Certification for helping you pick up your machine.

After machine arrived, you just need connect power supply, software etc, it's very easy for you.

We have prepared teaching video for you, and we also provide technical support online and technicians for on-site training if you need.

If you have time, welcome to visit our company, you can operate and learn the machine by yourself.
