CNC Brush Deburring Edge Rounding Machine For Sheet Metal Parts Polishing

Large Image : CNC Brush Deburring Edge Rounding Machine For Sheet Metal Parts Polishing

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	Ejon

Payment & Shipping Terms:

Price:	$20,000.00/sets 1-2 sets
Packaging Details:	The export wooden box
Supply Ability:	5000 Set/Sets per Year

Contact Now

CNC Brush Deburring Edge Rounding Machine For Sheet Metal Parts Polishing

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2022
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Power (kW):	5	Weight (KG):	1500
Key Selling Points:	High Productivity	Warranty:	1 Year
Applicable Industries:	Construction Works , Building Material Shops, Advertising Company, Machinery Repair Shops, Manufacturing Plant	Showroom Location:	Egypt, Japan, Australia
Product Name:	Sheet Metal Parts Deburring Machine	After-sales Service Provided:	Video Technical Support/online Support
Application:	Deburring Polishing Chamfer Rust Removal	Polishing Work Piece Material:	Stainless Steel, Iron, Brass, Alloy Plate
Packing:	Wooden Box	Material Thickness:	80 Mm
Material Width:	1~900 Mm	Machine Size:	2050mmX1500mmX1900mm
Spindle Speed:	0~1000 R/min(Variable Frequency Adjustable)	Transfer Speed:	Frequency Conversion 0.5-14 M/min
Port:	Tianjin Port

Product Description

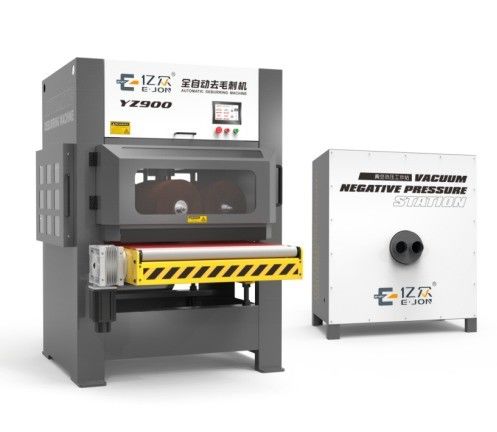

Ejon YZ900 AUTOMATIC DEBURRING MACHINE can uniformly remove the burrs of parts surface, contour edge and hole edge and can chamfer evenly, though linear processing with multiple sets of grinding wheel’s rotating, revolving and alternating. It becomes one of the most popular corollary equipment in the field of metal sheet parts deburring for production line of laser cutting, CNC punching as well as other machining process.

Specification

ITEM	PARAMETERS
Processing range	W:900mm; H:80mm; L:Unlimited
Delivery method	Conveyor belt
Spindle speed	0-1000r/min(Variable frequency adjustable)
Alternate motor	200W Brushless Motor Chuangwei
Transfer speed	Frequency conversion 0.5~14 m/min
Grinding wheel set	4 sets
Fixed method	Negative pressure plus magnetic suction double system
Dimensions	205015001900mm
Machine warranty period	1 year
Application	Stainless steel, Galvanized plate, Coated sheet, Copper plate

Main Features

Flexible Processing+

Visual Free Adjustment

Digital monitoring of grinding friction resistance, the grinding quantity and travel parameters can be convenient and quickly adjusted, which can only polish the workpiece contour and sharp edge without damaging the surface, and effectively protect the coating of the workpiece.

Double Absorption Techniques

* Turbine vacuum adsorption technology

The workpiece including the bended and deformed workpieces can be firmly adsorbed

and polished, which eliminates the loss pressure or failure of the vacuum
adsorption system due to blockage.

* Magnetic suction system

The negative pressure adsorption system does not need to be opened when the workpiece can be magnetically adsorbed, and the power consumption of the equipment will be greatly reduced, saving production cost to the maximum extent.

General Consumables

The grinding wheels adopt general consumables without special customization or designated suppliers to buy, which eliminates the limitations of consumables binding to

imported equipment or some domestic brand equipment and greatly reduces the user's cost.

Dust Collector Port

Equipped with the port of pulse dust collector, which can suck away the dust generated in the process of working, and collect them in the dust collection box to keep the working environment clean. The dust collector itself has recoil function, which can automatically clean the filter to prevent dust removal failure due to blockage (optional: 1. Separate dust removal equipment; 2. Link to existing plant equipment ).

Company Profile

Tianjin Ejon Flying Science and Technology Co., LTD., was founded in 2017, located in Tianjin, China, is specialized in the production of CNC automation equipment and has independent intellectual property rights and a high-level research and development team. The factory covers an area of more than 2,500 square meters, annual sales is more than 3,000 sets which are exported to hundreds of countries and regions. The main products including automatic channel letter bending machine, automatic grooving machine, automatic grinding machine, automatic deburring machine, laser welding machine, laser cutting machine, etc., are economic, durable and popular with dealers, distributors and the users.
Our professional engineers have rich experience to handle different kinds of technical problems.
Our passionate and patient customer service personnel are ready to solve all kinds of problems for buyers any time.
Our agents of several countries can provide local service in time. Meanwhile, we also recruit agents all over the world.

We are willing to be your best partner for win-win cooperation!

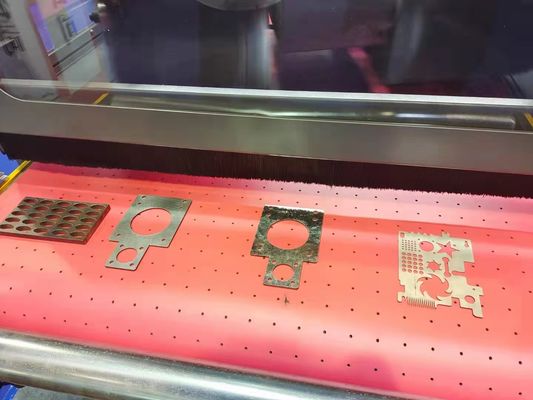

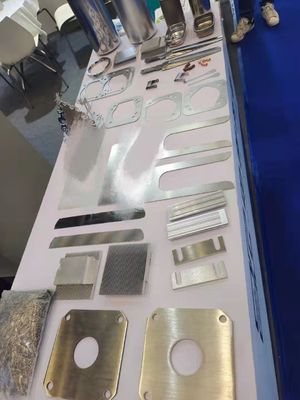

Polishing Effect

Packing & Delivery

ITEM	PARAMETERS
Size	2050mm1500mm1900mm
Weight	1500
Packaging details	wooden box

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. How to use?

We will provide manuals (electronic versions)of the electrical system, wiring diagrams, operation manuals, technical guides, maintenance manual, etc.

You can consult the service personnel about any problem related to the operation of the machine online at any time.

2. How can we guarantee quality?
IQC (Incoming Inspection) → IPQC (InPut Process Quality Control) → OQC (Outgoing Quality Control) → QA (Finished product Quality Assurance)

3. How long is the warranty?

The whole equipment (except wearing parts) is guaranteed for one year and maintained for life.

4. Are you factory?

Yes, we are a factory which has more than 10 years of production experience, you can get the machine with a very competitive price.

You can also buy other CNC equipment from us, such as laser cutting machine, automatic slotting machine, channel letter bending machine, laser welding machine, etc. https://tjejon.en.alibaba.com/productlist.html

5. Can I be your agent?

Sure, we are developing our business all over the world, and we also need more agents, welcome to join us. You can get the most preferential price if you have become our agent.
